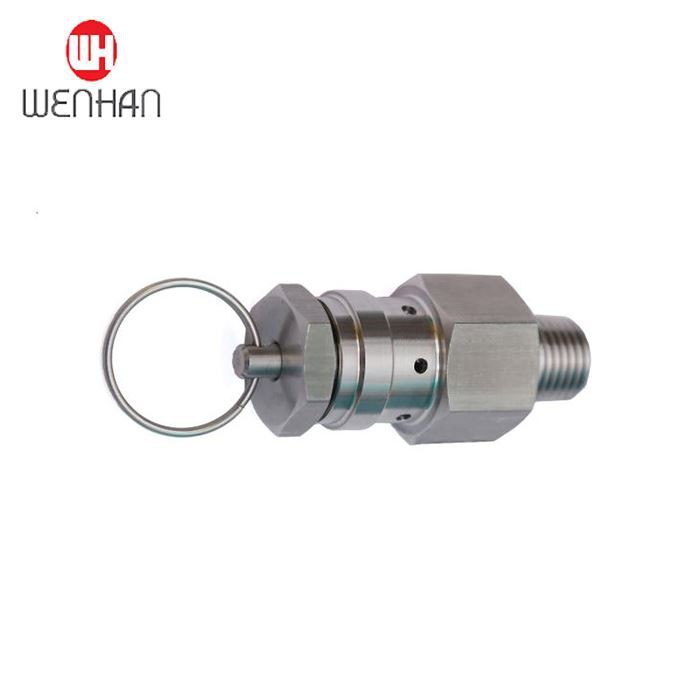

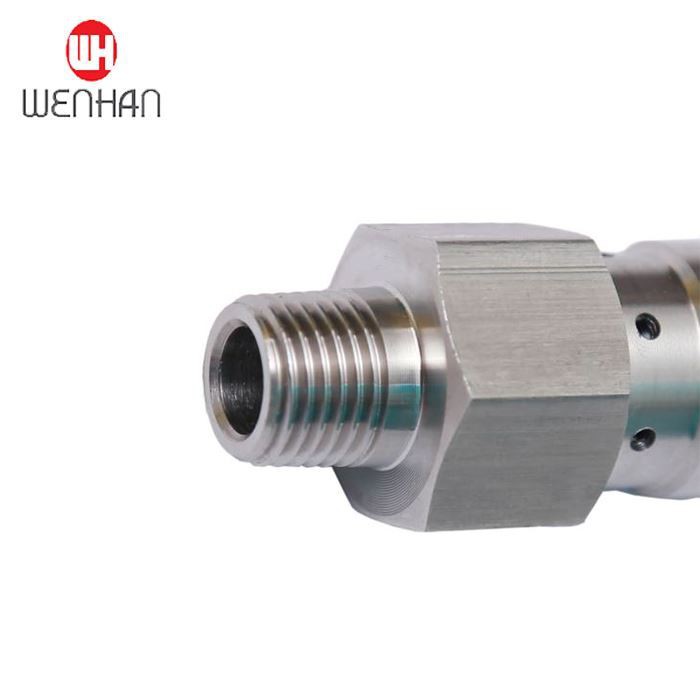

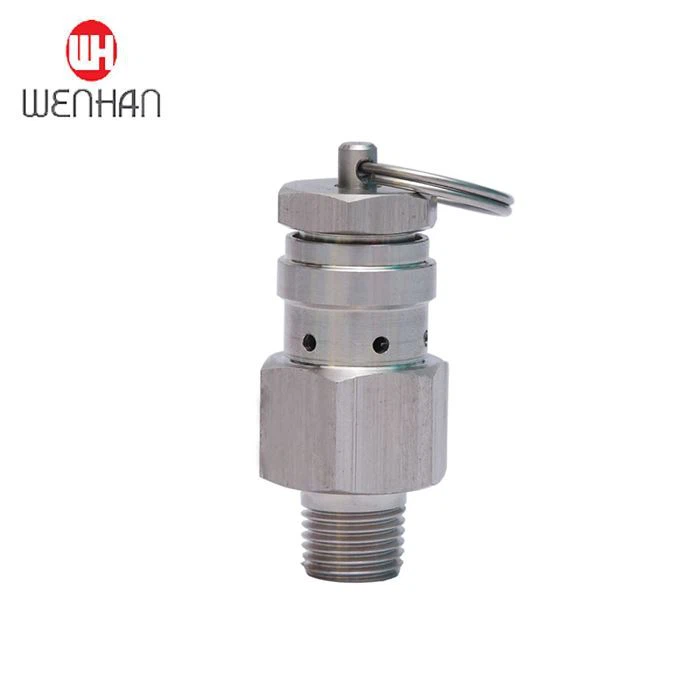

Pressure Relief Adjustable Exhaust Safety Valves
WH-5105(NPT 1/4)
The valve is applied to the pressure vessel type pipeline system. The stainless steel hand-operated one-way exhaust valve protects the container from excessive pressure explosion.
- Product Introduction
Pressure Relief Adjustable Exhaust Safety Valves are important safety valves that can control the pressure within a certain range to ensure that the system will not be damaged by excessive pressure. Therefore, with the continuous improvement of the degree of industrialization, the demand for such safety valves will increase.
In the process of industrial production, pressure fluctuations are unavoidable, so choosing a suitable pressure regulating valve will become more and more important. Pressure Relief Adjustable Exhaust Safety Valves can automatically release gas or liquid exceeding the preset pressure as needed to protect the safety of the system and personnel.
Technical parameters: Connection method: Thread Working pressure: 0.02-0.3mpa Working temperature -30C. +150c working medium: gas
NO | Name | Material |
1 | Valve body | SS304 |
2 | Spool seal sleeve | EPDM |
3 | Closed core sleeve | SS304 |
4 | Spring | SS304 |
5 | Rating nut | SS304 |
6 | Valve element | SS304 |
7 | Ring-pull | SS304 |
