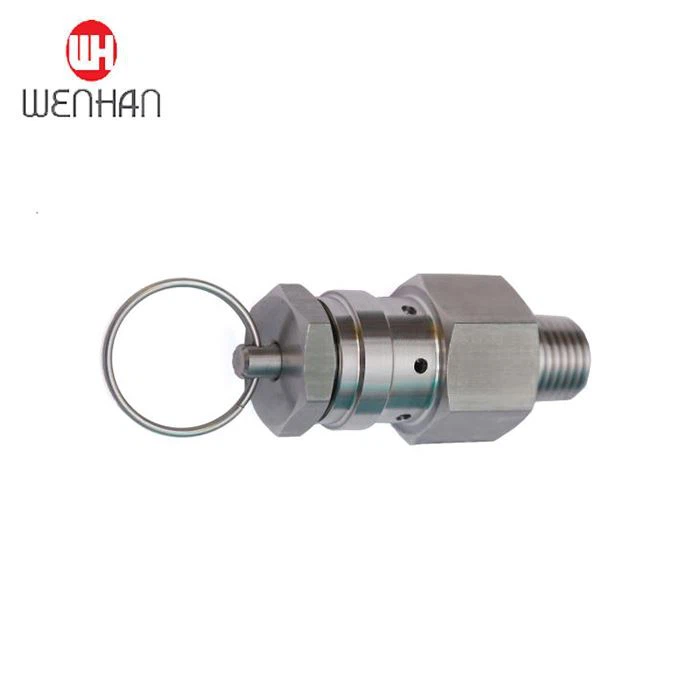

Wine Barrel Exhaust Valves
WH-5105(NPT 1/4)
The valve is applied to the pressure vessel type pipeline system. The stainless steel hand-operated one-way exhaust valve protects the container from excessive pressure explosion.
- Product Introduction
Wine Barrel Exhaust Valves are specially designed valves used in wine barrels to regulate the release of carbon dioxide during the fermentation process. These valves have several unique features and advantages that make them an essential tool for winemakers.
The first important feature of that they are made from high-quality materials that can withstand the harsh conditions of the wine barrel. The valves are resistant to corrosion, ensuring that they remain in good condition even after prolonged use.
Another key feature of their ability to regulate the flow of carbon dioxide during the fermentation process. The valves have an adjustable metering system that allows winemakers to maintain a precise level of carbon dioxide release, thereby guaranteeing consistent wine quality every time.
The most significant advantage of using Wine Barrel Exhaust Valves is that they help to maintain the integrity and quality of wine by preventing unwanted oxidation during the fermentation process. The valves prevent air from entering the wine barrel while allowing carbon dioxide to escape, which helps preserve the delicate flavors and aromas of the wine.

Technical parameters: Connection method: Thread Working pressure: 0.02-0.3mpa Working temperature -30C. +150c working medium: gas
NO | Name | Material |
1 | Valve body | SS304 |
2 | Spool seal sleeve | EPDM |
3 | Closed core sleeve | SS304 |
4 | Spring | SS304 |
5 | Rating nut | SS304 |
6 | Valve element | SS304 |
7 | Ring-pull | SS304 |
