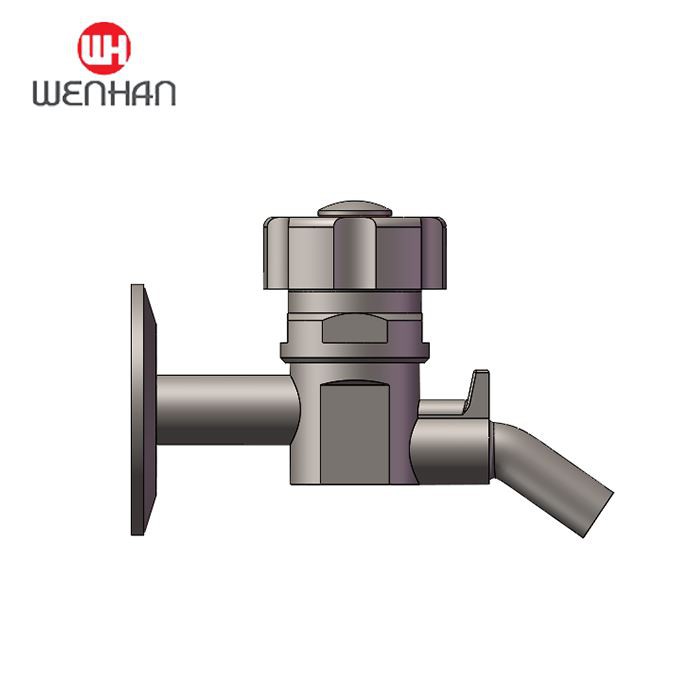

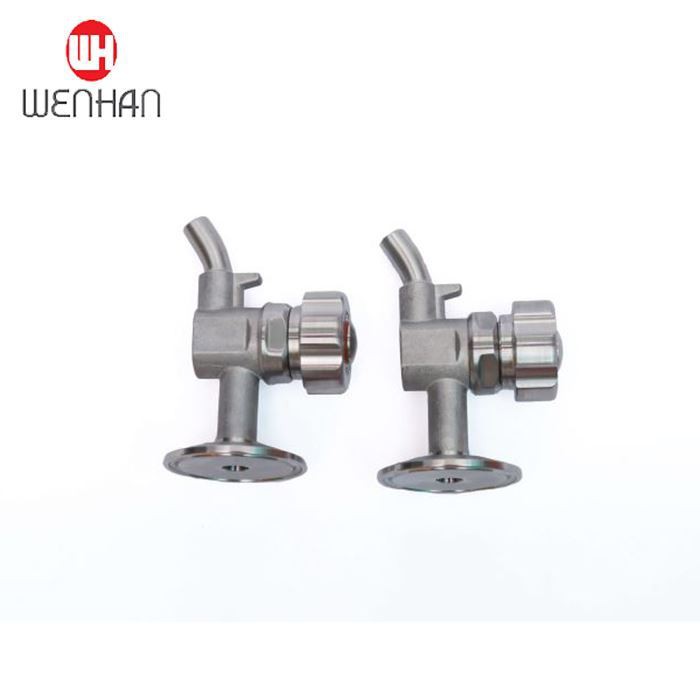

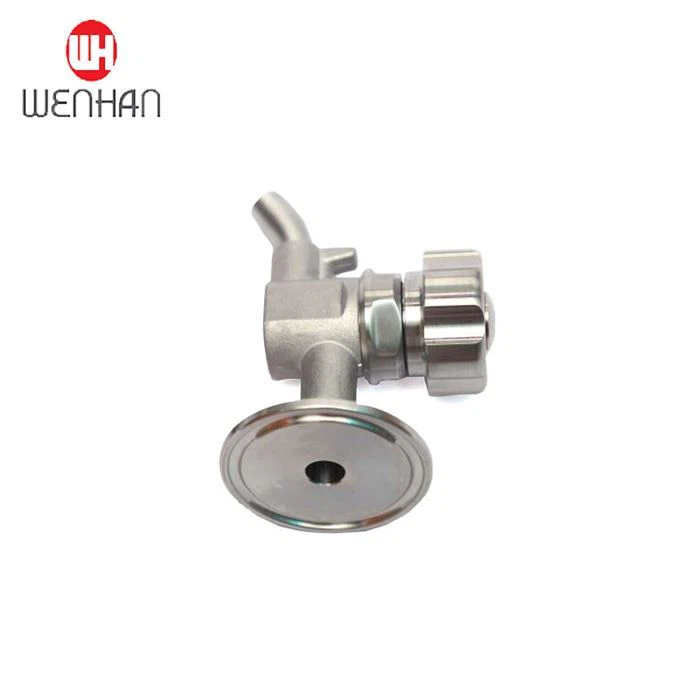

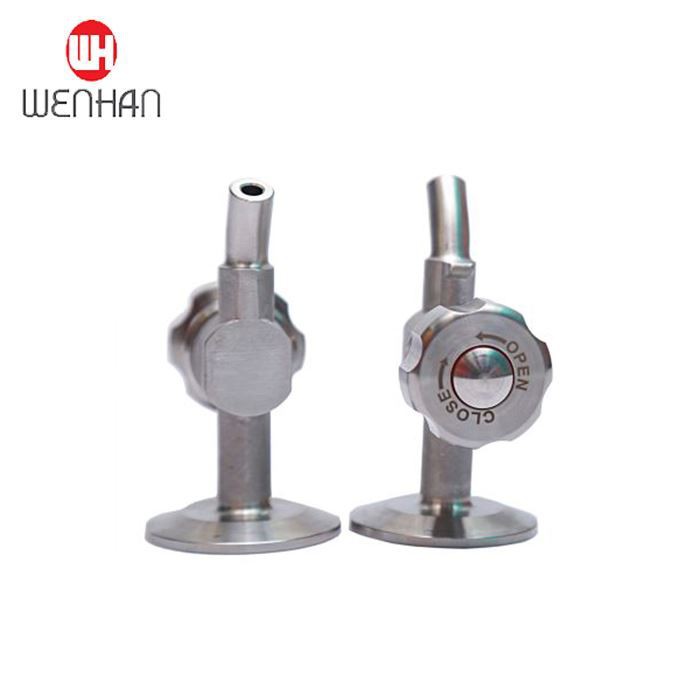

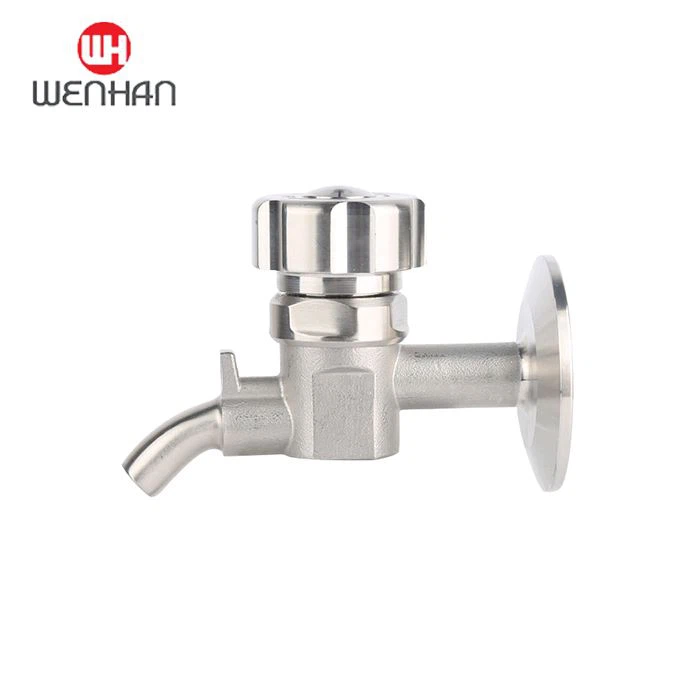

Take The Wine Valves
WH-5104B
Originally dismantled, original; (see Figure 8). When reinstalling, please note that the nut (2) should be locked with the valve body (4) with a wrench (square) and tighten clockwise.
- Product Introduction
EPDN telescopic, sealed, suitable for sampling beer, beverage, container equipment
|
NO |
Name |
Material |
|
1 |
Valve body |
SS304 |
|
2 |
Filler plate |
EPDN |
|
3 |
Valve element |
SS304 |
|
4 |
Drift pin |
SS304 |
|
5 |
Nut |
SS304 |
|
6 |
Snap spring |
SS304 |
|
7 |
Spacer bush |
SS304 |
|
8 |
Open and round handle |
SS304 |
|
9 |
Ball seat |
SS304 |
Disassembly and assembly
Originally dismantled, original; (see Figure 8). When reinstalling, please note that the nut (2) should be locked with the valve body (4) with a wrench (square) and tighten clockwise. Disassemble and disassemble in the reverse order of assembly.
Note: When reinstalling, the nut (clockwise and counterclockwise) should be turned back and forth to allow the rubber to be flattened inside the valve body. Keep it clean and put it back.

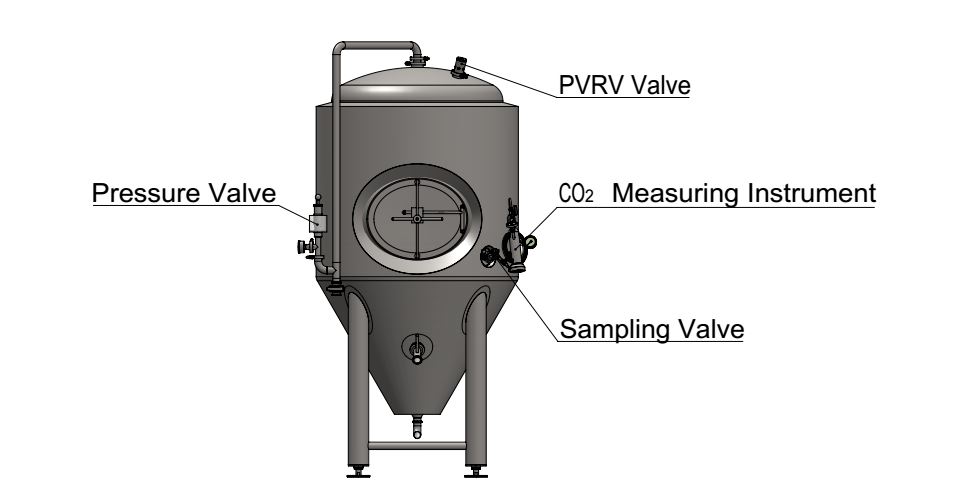

Application Scene
