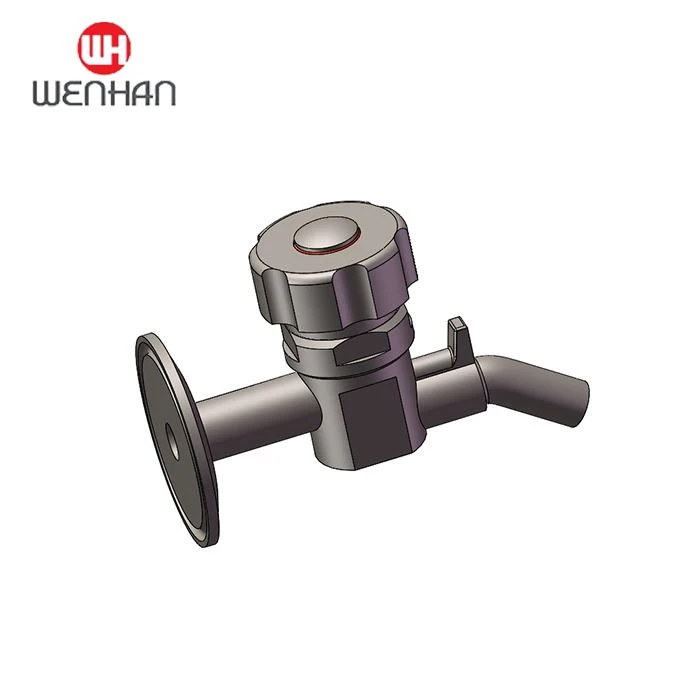

Beer Equipment Sampling Valves
WH-5104B
Stainless steel sampling valve also known as sampling valve, sampler, is a multi-purpose valve, is also used to obtain pipeline or equipment medium samples of the valve.
- Product Introduction
Beer Equipment Sampling Valves are specially designed valves that enable brewers to take samples of beer from their equipment without risking contamination or compromising the integrity of the product. These valves are made of high-quality materials such as stainless steel, which is known for its resistance to corrosion and durability. They are also designed in a way that makes them easy to clean and sanitize, ensuring that the beer remains pure and uncontaminated. The valve's ability to accurately sample the beer is an essential feature, allowing brewers to test and adjust the quality of their beer as it moves through the production process.
EPDN telescopic, sealed, suitable for sampling beer, beverage, container equipment
Stainless steel sampling valve also known as sampling valve, sampler, is a multi-purpose
valve, is also used to obtain pipeline or equipment medium samples of the valve, in many
need to often on the occasion of chemical analysis of medium samples.
NO | Name | Material |
1 | Valve body | SS304 |
2 | Filler plate | EPDN |
3 | Valve element | SS304 |
4 | Drift pin | SS304 |
5 | Nut | SS304 |
6 | Snap spring | SS304 |
7 | Spacer bush | SS304 |
8 | Open and round handle | SS304 |
9 | Ball seat | SS304 |
Instructions
When the valve is sampled, the round handle is shown in Fig. 8 (1) OPEN direction, CLOSE direction when closing, in and out flow direction
See Figure 8 (7-6). The outlet can be equipped with a defoamer and a test CO2 machine (5).
Application Scene
