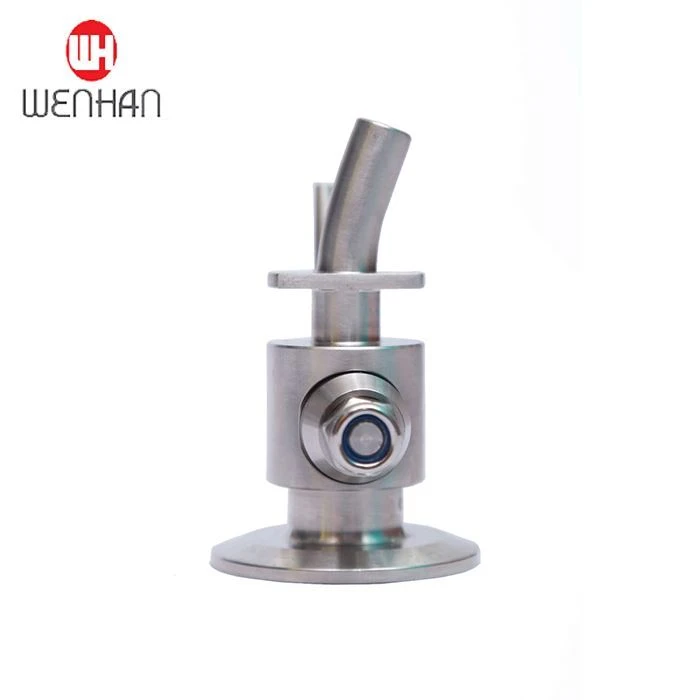

Alcohol Sample Valves
WH-5104A
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
- Product Introduction
Alcohol Sample Valves are high-quality valves used for sampling alcoholic beverages. These valves are made from durable materials such as stainless steel and are designed to withstand the harsh conditions of industrial alcohol production. They are easy to install and use, and are designed to work with a variety of different alcohol containers. The valves are also equipped with special features that help to prevent contamination, such as self-closing mechanisms and sterilization options. Additionally, they can be customized to meet the specific needs of each individual customer, ensuring maximum performance and efficiency.
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
Technical parameters: Interface: clamp Pressure: 0.3mpa Working medium: liquid gas
Size | D2 | D1 | D3 | D4 | H |
1.5” | Φ11.4 | Φ5 | Φ30 | Φ50.5 | 83 |
2” | Φ11.4 | Φ5 | Φ30 | Φ64 | 83 |
sample order
if you…
1. Want to buy sample order first.
2. Buy a complete order after confirming the product quality.
Then our sample order service is for you!
sample order
NO | Name | Material |
1 | Nut | SS304 |
2 | Core cover | SS304 |
3 | Spring | SS304 |
4 | Valve body | SS304 |
5 | Valve element | SS304 |
6 | Hand shank | SS304 |
Application
Mainly used for sampling from tanks or pipelines.It can also be assembled at the bottom of a tank or pipe to remove residues.Suitable for food, chemical industry, medicine, cosmetics, biotechnology and other industries.And all departments that need sanitation.
Application Scene
