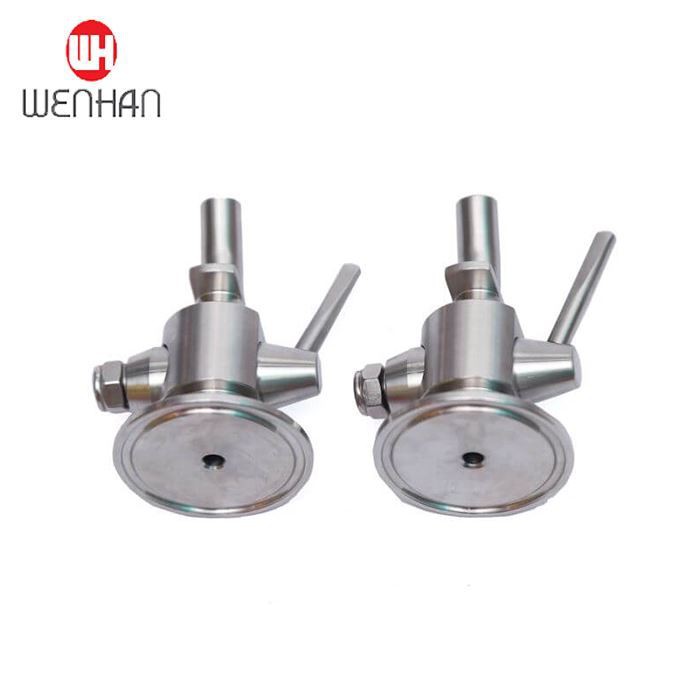

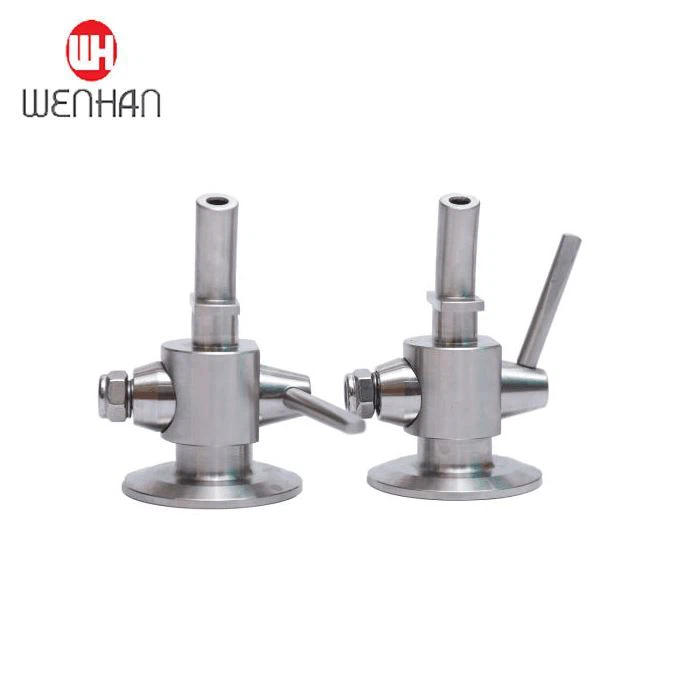

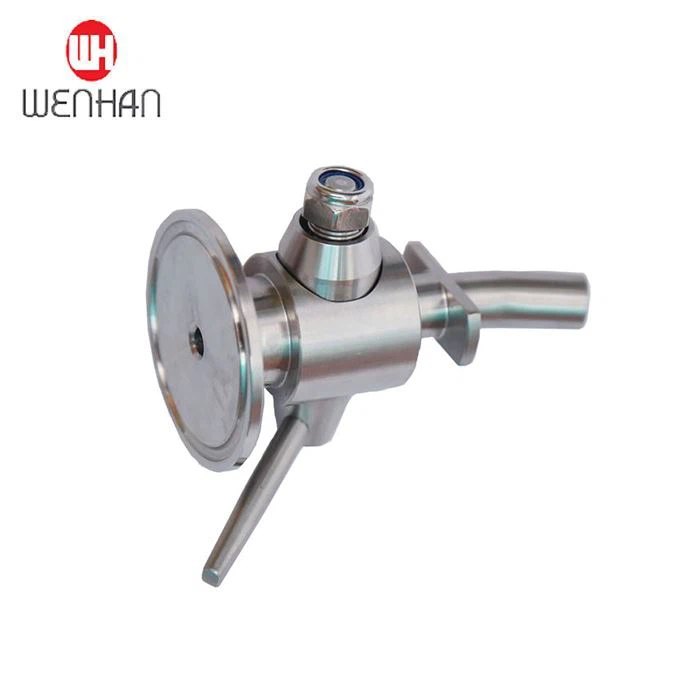

Fermenter Sample Valves
WH-5104A
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
- Product Introduction
Fermenter Sample Valves are high-quality sampling valves used in the fermentation process for beer and wine. These valves are made from high-quality stainless steel and feature a compact design, making them easy to install and operate. The provide an easy and reliable way to take samples during the fermentation process, allowing brewers and vintners to monitor their products' progress accurately. They are also designed with a self-closing mechanism to prevent contamination and ensure the product's purity. are a valuable addition to any fermentation process, providing brewers and vintners with accurate and reliable sampling tools to ensure their product quality.
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.



Technical parameters: Interface: clamp Pressure: 0.3mpa Working medium: liquid gas
Size | D2 | D1 | D3 | D4 | H |
1.5” | Φ11.4 | Φ5 | Φ30 | Φ50.5 | 83 |
2” | Φ11.4 | Φ5 | Φ30 | Φ64 | 83 |
NO | Name | Material |
1 | Nut | SS304 |
2 | Core cover | SS304 |
3 | Spring | SS304 |
4 | Valve body | SS304 |
5 | Valve element | SS304 |
6 | Hand shank | SS304 |
Disassembly and assembly
1.Disassembly
Unscrew the locknuts (3) in anti-clockwise direction by inner square wrench,
Disassemble the locknuts (3), spring (12) and valve plate (6),
Disassembly the valve core(9)
2.Assembly
Thoroughly clean and slightly lubricate mounting areas and running surfaces.
Assemble in reverse order.







Application Scene
