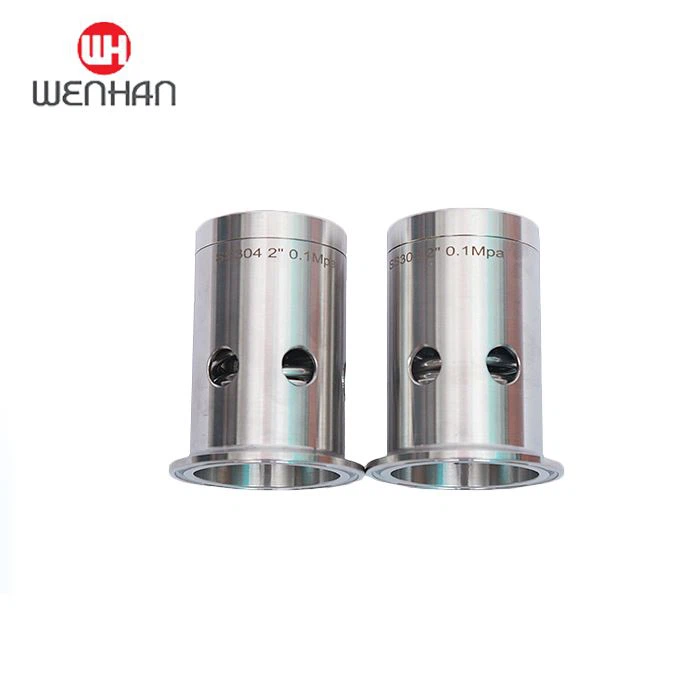

Vacuum Exhaust Integrated PVRV Valves
WH-5102(2.5 inch PVRV)
The valve is applied to a pressure vessel type piping system. The breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can be vented, and vice versa.
- Product Introduction
Vacuum Exhaust Integrated PVRV Valves are high-performance pressure relief valves that are specifically designed to protect vacuum systems from overpressure conditions. These valves are equipped with an integrated vacuum exhaust system, which allows for rapid venting of excess pressure and vacuum in a controlled manner, minimizing potential damage to vacuum systems.
The main feature of the Vacuum Exhaust Integrated PVRV Valve is its ability to regulate pressure within the vacuum system without compromising system integrity. The valve is constructed from high-quality materials that ensure long-term reliability and durability, making it an ideal choice for critical vacuum applications. Additionally, these valves are available in a range of sizes to accommodate various vacuum system designs and are easily installed, making it a user-friendly component.
Introduction to functions and features
The valve is applied to a pressure vessel type piping system. The breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can be vented, and vice versa. When the vacuum is generated in the piping system (standard -0.2BAR) When the valve is automatically opened to ensure the safety protection of the equipment and related instruments, it can also meet the needs of various production processes. The valve is made of stainless steel and hygienic design, which is suitable for various food processing, beer, beverage and pharmaceutical industries. Industrial field.
Size | D2 | D1 | D3 | H |
Φ34 | Φ34 | Φ25 | Φ30.5 | 49mm |
1” | Φ34 | Φ25 | Φ30.5 | 49mm |
1.5” | Φ50.5 | Φ35 | Φ42 | 72mm |
2” | Φ64 | Φ47 | Φ51 | 85mm |
2.5” | Φ78 | Φ59 | Φ64 | 90mm |
3.5” | Φ105 | Φ83 | Φ88 | 135mm |
Technical parameters: Interface: clamp Pressure: 0.2mpa Temperature: -30C. +150c. Working medium: gas
At present, many well-known beer equipment manufacturers and foreign distribution companies at home and abroad are long-term OEM customers of our company. Pressure regulating valves, breathing valves, sampling valves and defoamers are our key products.
NO | Name | Material |
1 | Valve body | SS304 |
2 | Valve element | EPDM |
3 | Filler plate | SS304 |
4 | The valve core seat | SS304 |
5 | Negative pressure | SS304 |
6 | Positive pressure spring | SS304 |
7 | Blind nut | SS304 |
Application Scene
FAQ:
Quick response
All requests will be reply within 1 hours.
How long i can get the feedback after we sent the enquiry?
We will reply you within 1 hours in working day.
How many days will samples be finished? And how about the mass production?
A: Sample leadtime: usually need 7-15days. Mass production leadtime usually need 30 days
If you are the urgent order,we can delivery about 20 days.
If the products have some quality problem,how will you deal with it?
A: Each step of production and finished products will be inspected by QC department before shipping.If the quality problem of products caused by us, we will provide a replacement service.
