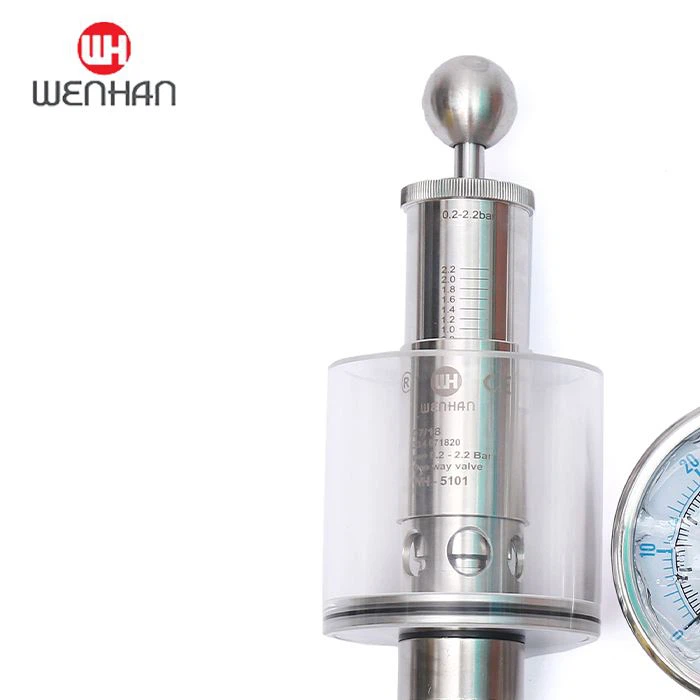

Safety Water Seal Bunging Valves
WH 5101B
This valve used in the pressure vessel type pipeline system, adjust the one-way containers high pressure explosion-proof vent valve protection function.
- Product Introduction
Safety Water Seal Bunging Valves are an essential accessory for any laboratory or industrial setting. This high-quality valve is designed to prevent liquid leaks and maintain a safe environment. The valve features a water-sealed mechanism that ensures zero leakage and is suitable for use in highly corrosive environments. Its compact design makes it easy to install and operate, and it is available in a range of sizes to accommodate different needs. The valve is also highly durable and resistant to wear and tear, making it a reliable choice for long-term use.
SUS304 fermenter top bunging pressure device regulating valves Φ100 dial Φ 32 fast loading.
Introduction to functions and features:
This valve used in the pressure vessel type pipeline system, adjust the one-way containers high pressure explosion-proof vent valve protection function, when the pressure is higher than the set pressure (standard 1 bar) can exhaust, whereas closed, pressure regulating lever in scale, the pressure on the scale adjustment, the valve is easy to use, accurate scale, at the same time can also meet the demand in all kinds of production technology, suitable for all kinds of food processing, beer, beverage and pharmaceutical and other industries.
Disassembly and assembly
Disassembly
●Evacuate the liquid from the glass cylinder（7）. Remove the glass cylinder (7) from the tighty seat (1)
●Unscrew spherical button(3)
●Unscrew adjustment nut（8）（the tension from the pressure spring(11) is completely released）
●Remove spring disk, spindle,pressure spring（11）and distance（12）
●Dismount O-Rings and seal
NO | Name | Material |
1 | Valve seat | SS304 |
2 | Ball seat | EPDN |
3 | O ring | EPDN |
4 | Valve body | SS304 |
5 | Glass cover | PMMA |
6 | O ring | EPDN |
7 | Valve element | SS304 |
8 | Spring pad | SS304 |
9 | Spacer bush | SS304 |
10 | Spring | SS304 |
11 | Adjustment lever | SS304 |
12 | Pull rod | SS304 |
13 | Pull the ball | SS304 |
