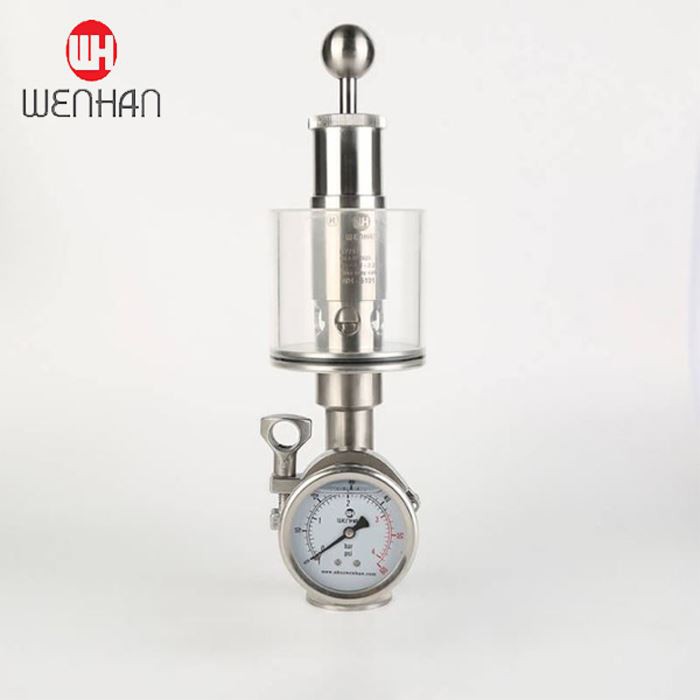

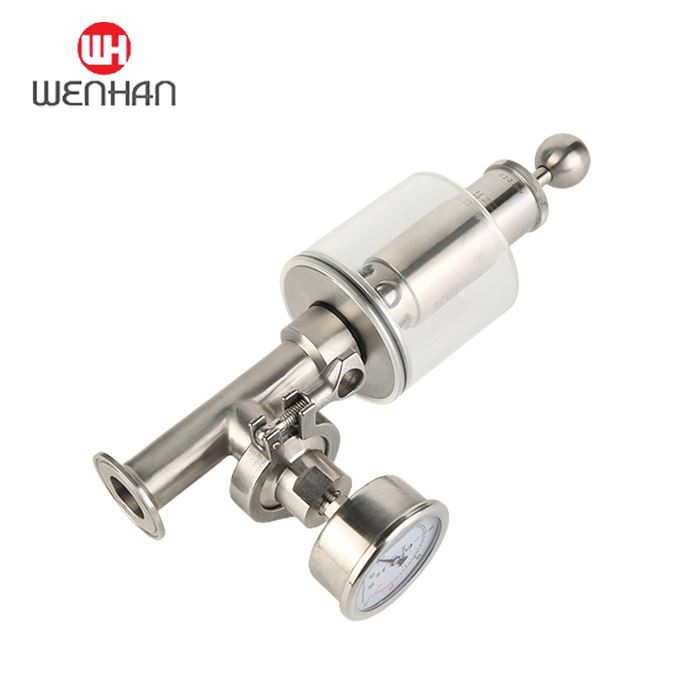

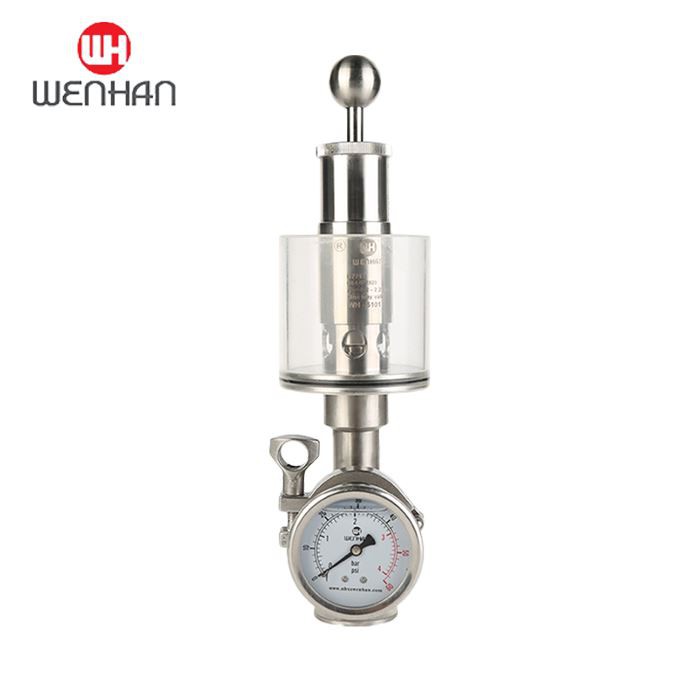

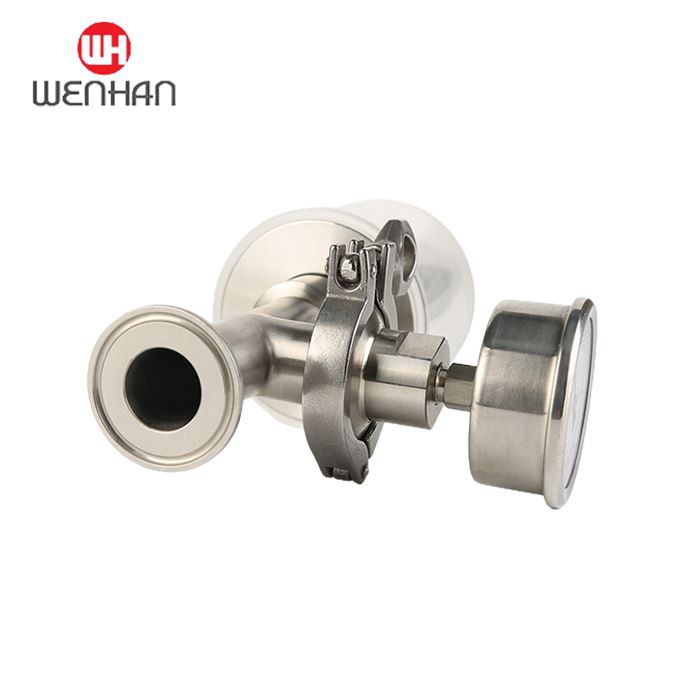

Sanitary SUS304 bunging device exhaust valves

WH-5101G The valve is applied to pressure vessel pipeline system

  • Product Introduction

Sanitary SUS304 bunging device exhaust valves are a type of valve used in the food and beverage industry for effective and sanitary ventilation of tanks and vessels. These valves are made of high-quality stainless steel material and are designed to withstand harsh fluids and corrosive chemicals. They are also designed to be easy to clean and maintain, ensuring hygiene levels are maintained.


One of the main features of  their ability to provide a tight seal over the vessel's opening while still allowing for proper ventilation. This feature ensures that the contents of the vessel remain fresh while preventing contamination from external sources. Additionally, these valves are designed to be easily installed on the sides of tanks and vessels, making them a convenient option for manufacturers.


In terms of industry trends, there has been an increased focus on implementing more sanitary measures in food and beverage processing. are a reflection of this trend, as they help manufacturers meet stringent hygiene standards. With the demand for safe, high-quality products on the rise, manufacturers are turning towards options that can help them effectively control the quality and freshness of their products.

a

Technical data:

Working pressure, pressure regulation range 0.2-2.2 bar 1.1-3.2 bar

Working temperature. - 30 ℃ + 130 ℃

                         No.                           Name              Material
                         1                       Valve seat               SS304
                         2                         Gasket               EPDN
                         3                         O-ring               EPDN
                         4                   Valve body               SS304
                        5                   Glass cover               PMMA
                        6                        O-ring               EPDN
                        7                  Valve element               SS304
                        8                     Spring pad               SS304
                        9                   Spacer bush
               SS304
                       10                      Spring               SS304
                       11              Adjustment lever
               SS304
                       12
                  Pull the rod               SS304
                       13                  Pull the ball               SS304

c
