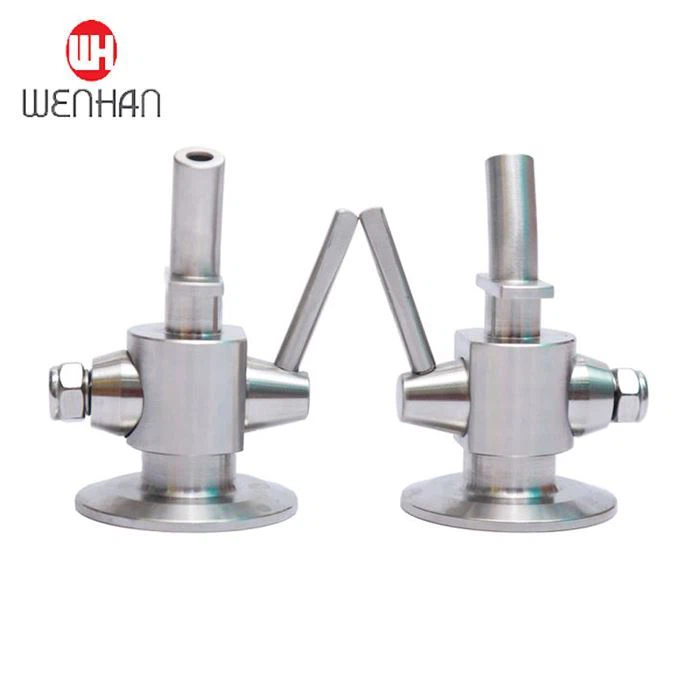

Wine Head Valve
WH-5104A
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
- Product Introduction
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.


Wine Head Valve is a specialized technology used in the wine-making industry that plays a critical role in the fermentation process. It is an innovative valve system that helps regulate the flow and release of CO2 during fermentation, allowing for a more controlled and efficient fermentation process. The valve system is specifically designed to prevent excessive release of CO2, which can lead to spoilage and oxidation of the wine. The technology ensures that the CO2 levels remain consistent and optimal, resulting in the production of high-quality wines.
One of the key features of ability to integrate with existing fermentation equipment, making it a cost-effective and efficient solution for wineries. The technology is also easy to use, making it accessible to both large and small wineries. As the wine-making industry continues to evolve, there is a growing demand for innovative solutions that can enhance the quality and efficiency of the production process. meets this demand with its advanced technology and ease of use, making it a valuable asset for wineries worldwide.
Technical data: Connection:Clamp Pressure:0.3mpa Working Media:Liquid gas
| Size | D2 | D1 | D3 | D4 | H |
| 1.5" | Φ11.4 | Φ5 | Φ30 | Φ50.5 | 83 |
| 2" | Φ11.4 | Φ5 | Φ30 | Φ64 | 83 |

| No | Name | Material |
| 1 | Locknut | SS304 |
| 2 | Core Cover | SS304 |
| 3 | Spring | SS304 |
| 4 | Valve body | SS304 |
| 5 | Valve element | SS304 |
| 6 | Handle | SS304 |
Application Scene
