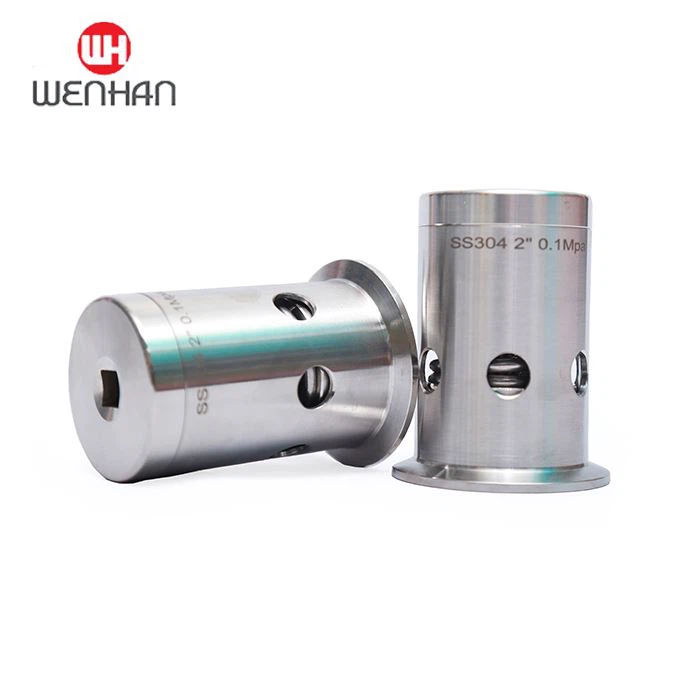

Beer Brewing Safety PVRV Valves
WH-5102(2.5 inch PVRV)
The breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can be vented, and vice versa.
- Product Introduction
Beer Brewing Safety PVRV Valves are essential safety equipment for brewing operations. These valves are designed to prevent over-pressurization of brewing vessels, which can lead to dangerous explosions. The PVRV (pressure and vacuum relief valve) system is a fail-safe mechanism designed to protect both equipment and personnel. These valves are made of high-quality materials and are designed to meet or exceed industry standards for safety and performance. They are also easy to install and maintain, ensuring reliable safety in brewing operations.
Introduction to functions and features
The valve is applied to a pressure vessel type piping system. The breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can be vented, and vice versa. When the vacuum is generated in the piping system (standard -0.2BAR) When the valve is automatically opened to ensure the safety protection of the equipment and related instruments, it can also meet the needs of various production processes. The valve is made of stainless steel and hygienic design, which is suitable for various food processing, beer, beverage and pharmaceutical industries. Industrial field.
Size | D2 | D1 | D3 | H |
Φ34 | Φ34 | Φ25 | Φ30.5 | 49mm |
1” | Φ34 | Φ25 | Φ30.5 | 49mm |
1.5” | Φ50.5 | Φ35 | Φ42 | 72mm |
2” | Φ64 | Φ47 | Φ51 | 85mm |
2.5” | Φ78 | Φ59 | Φ64 | 90mm |
3.5” | Φ105 | Φ83 | Φ88 | 135mm |
Technical parameters: Interface: clamp Pressure: 0.2mpa Temperature: -30C. +150c. Working medium: gas
Disassembly and assembly
Assembly
●Thoroughly clean and slightly lubricate mounting areas and running surfaces.
●Assemble in reverse order.
NOTE
In part by alternating sides, push and roll the O-ring (5) into the groove with a round order.
Performance check
Test proper performance in the operating state according to the specified performance data.
Vacuum safety valve product use:
For negative pressure system: When the negative pressure in the negative pressure container system exceeds the allowable value, the valve automatically opens and draws in air. When the negative pressure is reduced to the specified value, the valve is automatically closed to ensure the safe operation of the equipment container and system.
NO | Name | Material |
1 | Valve body | SS304 |
2 | Valve element | EPDM |
3 | Filler plate | SS304 |
4 | The valve core seat | SS304 |
5 | Negative pressure | SS304 |
6 | Positive pressure spring | SS304 |
7 | Blind nut | SS304 |
Application Scene
To place your order:
1. Send us your order list (models/quantities/colors)
2. We will send you PROFORMA INVOICE (PI) with shipping cost and Payment information for your confirmation.
3. You arrange payment after you confirmed proforma invoice, we will arrange production after received your payment notice.
Specific delivery date depends on your specific needs, normally delivery in 1-3 days.
4. We will arrange delivery after your payment arrived and goods ready,and at the same time we will tell you goods tracking number so that you could know your goods condition by this number from courier site.How
5. You will receive your order in about 3-5 days after goods ship out.
