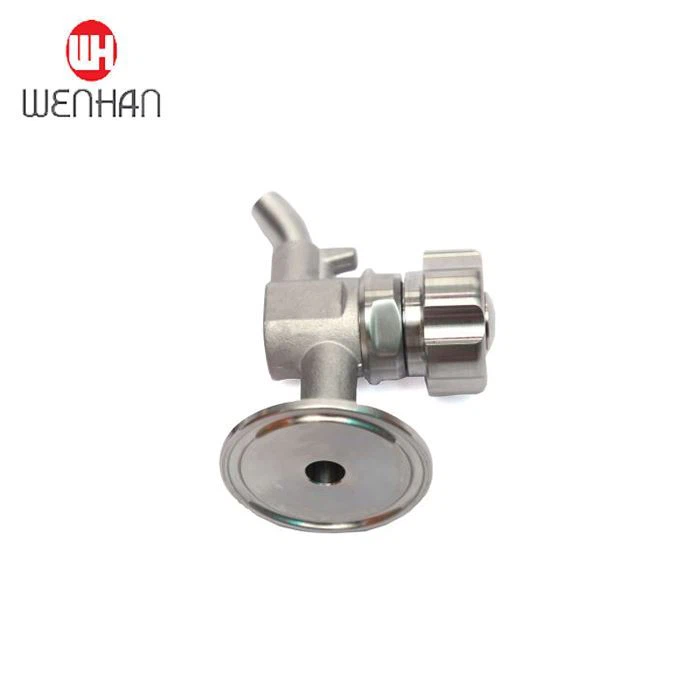

Stainless 304 Sample Valve
WH-5104B clamped sampling valve Using EPDN expansion, sealing, suitable for sampling beer, beverage, container equipment
- Product Introduction
The Stainless 304 Sample Valve is a high-quality industrial valve designed for use in food, beverage, pharmaceutical and chemical industries. It is made of durable stainless steel material, which ensures long-lasting performance even in harsh industrial environments. This valve has a unique design that allows for easy sampling of product without contaminating the rest of the batch. Its easy-to-operate handle and compact size make it a convenient and practical choice for many types of applications.
Specifications:
Positive Travel Stop prevents over closing the valve to increase seat life.
Type 316LSS Body.
Red Silicone "O" Ring indicates when the valve is open and provides a positive seal when closed.
Stainless Steel Stem with Double Lead Thread provides fast, smooth operation (1/8" travel = 1.2 turns).
Seat Cap is available in FDA-approved EPDM (STD) or Silicone.
Smooth Bore improves flow characteristics and cleaning.
Allows for Brewery Instruments such as a Zahm & Nagel to be attached.
| No. | Name | Material |
| 1 | Valve body | SS304 |
| 2 | Gasket | EPDN |
| 3 | Valve Element | SS304 |
| 4 | Pin | SS304 |
| 5 | Locknut | SS304 |
| 6 | Clip spring | SS304 |
| 7 | Spacer bush | SS304 |
| 8 | Open and parallet handle | SS304 |
| 9 | O-ring | SS304 |
Application Scene
