Aseptic Sampling Valve304
WH-5104CHygienic design, three-way caliber, with rubber seal inside
- Product Introduction
Aseptic Sampling Valve 304 is a product designed for efficient and reliable sampling in hygienic or aseptic processes. Made of high-quality 304 stainless steel, it is durable and resistant to corrosion, making it ideal for use in food and pharmaceutical industries. The valve operates without interference or interruption to the process, thanks to its patented internal self-cleaning mechanism, which ensures zero contamination. The valve also features a quick and easy sampling process, with minimal risk of leaks or spills.
WH-5104C Aseptic Sampling valve
Hygienic design, three-way caliber, with rubber seal inside. One end flushes the sterile sampling valve to sterilize before and after each sampling, and opens the valve. Sampling is done by turning on and off the circular handle and turning on the knob to open the valve according to the indication sign. Close the valve, disinfect through the opposite steps, built-in spiral closure valve, preserve the opening of the inner passage, for disinfection, after disinfection, screw with nuts at both ends, two threads can link the inflatable hose joint and defoamer. It is suitable for sampling beer, beverage and container equipment.
Technical data: Connection：Clamp Pressure：0.5mpa Working Media：Liquid gas

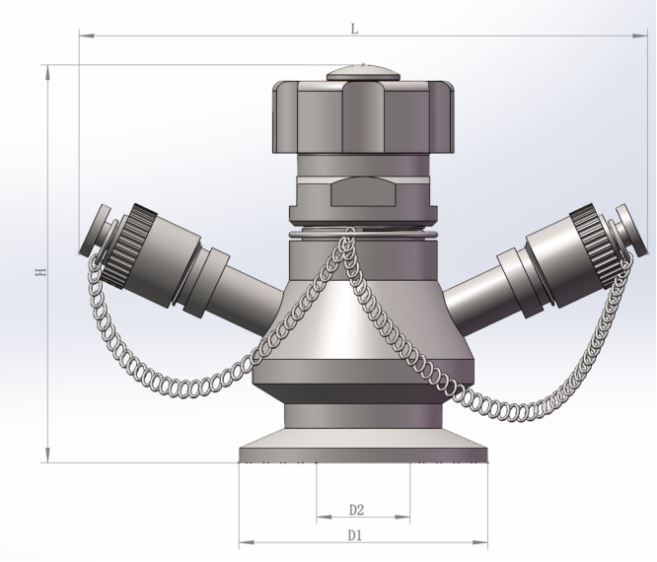

| Size | D1 | D2 | L | H |
| 1.5" | Φ50.5 | Φ19 | Φ112 | Φ80 |
| No | Name | Material |
| 1 | Valve body | SS304 |
| 2 | Gasket | EPDN |
| 3 | Screw cover | SS304 |
| 4 | Selant sleeve | EPDN |
| 5 | Washer | SS304 |
| 6 | Cilp spring | SS304 |
| 7 | Steel locknut | SS304 |
| 8 | Switch handle | SS304 |
| 9 | O-ring | EPDN |
