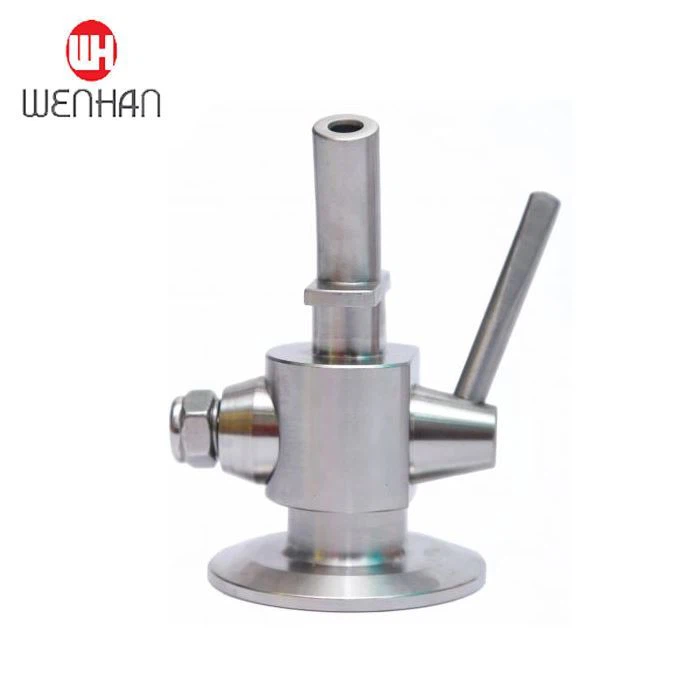

Hard Seal Sampling Valves
WH-5104A
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
- Product Introduction
Hard Seal Sampling Valves are high-quality valves designed for use in industrial processes. Made from durable materials, these valves are ideal for applications where corrosion, contamination, or leakage are a concern. The feature compact, low-profile designs that can be easily installed in tight spaces. Additionally, they are equipped with advanced sealing technology, which ensures reliable performance under high-pressure conditions. With their rugged construction and superior sealing capabilities, are the perfect choice for demanding applications in the chemical, petrochemical, and pharmaceutical industries.
Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
Technical parameters: Interface: clamp Pressure: 0.3mpa Working medium: liquid gas
Size | D2 | D1 | D3 | D4 | H |
1.5” | Φ11.4 | Φ5 | Φ30 | Φ50.5 | 83 |
2” | Φ11.4 | Φ5 | Φ30 | Φ64 | 83 |
NO | Name | Material |
1 | Nut | SS304 |
2 | Core cover | SS304 |
3 | Spring | SS304 |
4 | Valve body | SS304 |
5 | Valve element | SS304 |
6 | Hand shank | SS304 |
Field of application
This plug sample valve is used for liquid sampling of the food and drink industry, pharmaceutical and chemical industries as well as in biotechnology.
ATTENTION
To avoid danger and damage, the valve must be used in accordance with the safety instructions and technical data contained in the operating instructions.
