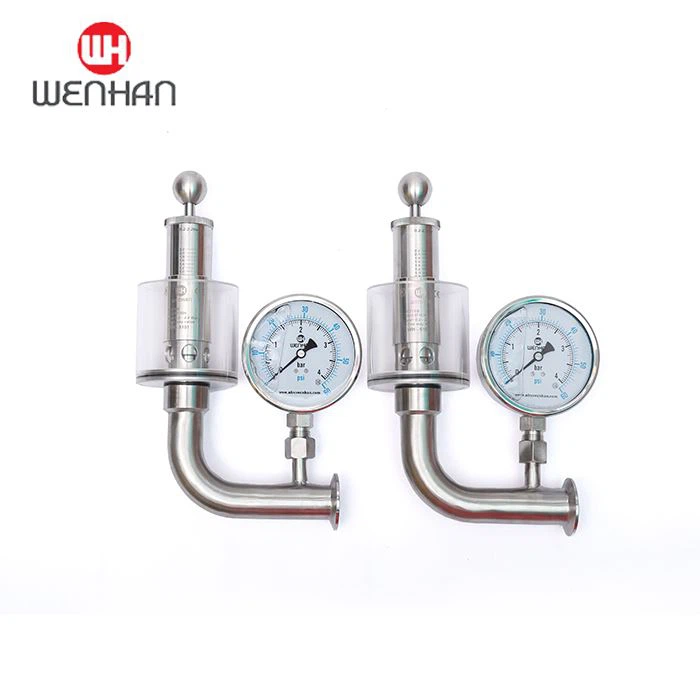

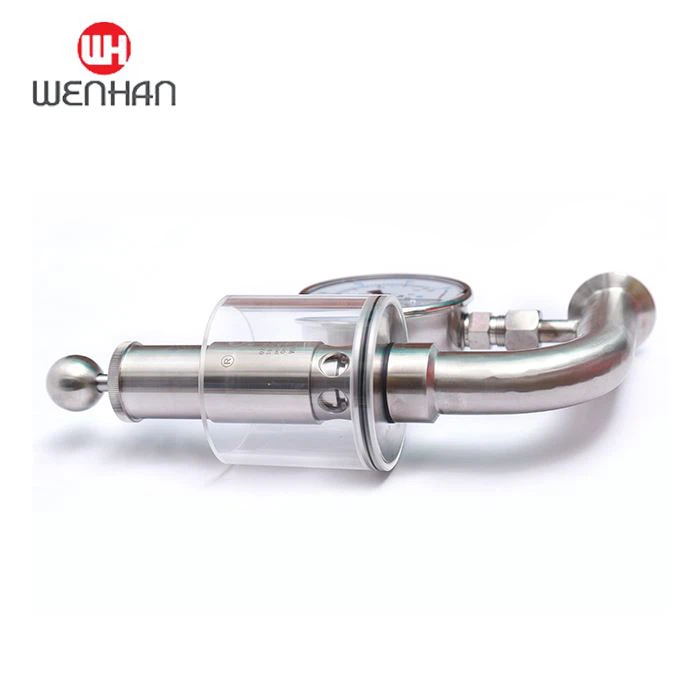

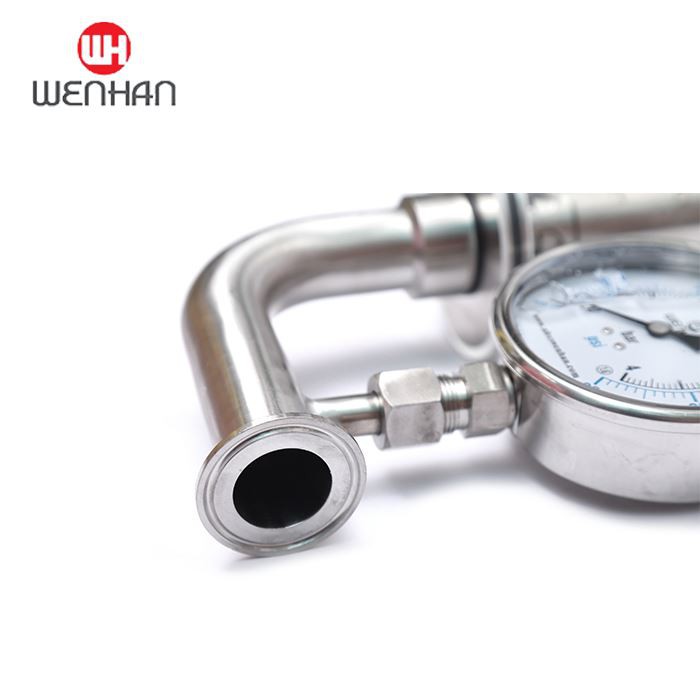

Stainless 2.5 Inch T(pressure Valve)
WH-5101B
- Product Introduction
The Stainless 2.5 Inch T Pressure Valve is a top-of-the-line pressure relief valve designed to regulate high-pressure systems with ease. Crafted from premium stainless steel, this valve is built to withstand the toughest environments and provide reliable performance for years to come. Its compact size and T-shaped design make it ideal for use in limited space applications, while its precise pressure control ensures accurate and consistent performance. Additionally, the valve is easy to install and maintain, making it an excellent choice for busy professionals and DIY enthusiasts alike.
Product Description
Customer Question & Answer
Stainless Steel Beer Brewery Spunding Valve Pressure Relief Valve (ACE-PJF-01)
Variable Pressure Relief Valve | Tri Clamp 1.5 in. 2.2 bar - SS304 / Silicone
This is a variable pressure relief valve, sometimes referred to as a "Bunging" or "Spunding" valve, traditionally used for controlled carbonation of products over time. Its operating range is 0.2 - 2.2 bar (2.9 - 30.9 PSI) however it is not recommended for use beyond the pressure rating of the vessel. Tanks are warrantied as a low pressure system up to 14.7 PSI (1 atmosphere). Provides calibrated relief of pressure for the carbonation of a variety of beverage products. Polycarbonate housing.
Material: SS304 stainless
Processing: CNC machine
Size: There are 25mm outter diameter with 1"/1.5" clamp ferrule and 32mm outter diameter with 1"/1.5" clamp ferrule optional. There are with the same clamp ferrule-50.5mm.
cking & shipping information of the China Tri Clamp Butterfly Valves with Stainless Steel Fiber Handle.
Product Description
Customer Question & Answer
Pressure relief valve--beer brewery
Material: SUS304, SUS316L, AISI304, AISI316L
Main size: 25mm-100mm&1"-4"
Connection: Welded, clamped, union ends
Certification: MTC certification
Application: It is specially designed for sanitary tank in beer brewery industry.
Please feel free to contact me if you need further information of us or our products.
The pressure relief valve is used in the brewery system, on the top of brewery tank, It is some kind of safety valve that opens when the pressure in the tank is too high. The pressure relief valve is control by a spring and monitor by a pressure gauge. The connection of the valve could be clamp or union or welding, Size according to customer's requirement.
The valve is applied to pressure vessel pipeline system, Regulating the one-way exhaust valve protects the container from explosion when the pressure is higher than the set pressure(Standard 1Bar).On the Contrary, It can exhaust when the pressure is higher than the set pressure(Stand I BAR).The pressure on the regulating rod is calibrated. The required pressure is adjusted according to the calibration. The valve is easy to use and accurate to calibrate.Adding water to the glass cover can see the fermentation effect and reduce bacterial contamination.At the same time.It can also meet the needs of various production process.suitiable for various food processing,beer, beverage and pharmaceutical industries.
Product Name：Pressure regulating valve
Material:Stainless Steel 304
Color:Nickel white
Connection:Clamp
Operation temperature:-30℃~150℃
Adjusting Range:0.2-2.2Bar,1.1-3.2Bar
Working Medium:Gas
Used:Beer,food,dairy,pharmaceutical,chemial equipment etc.

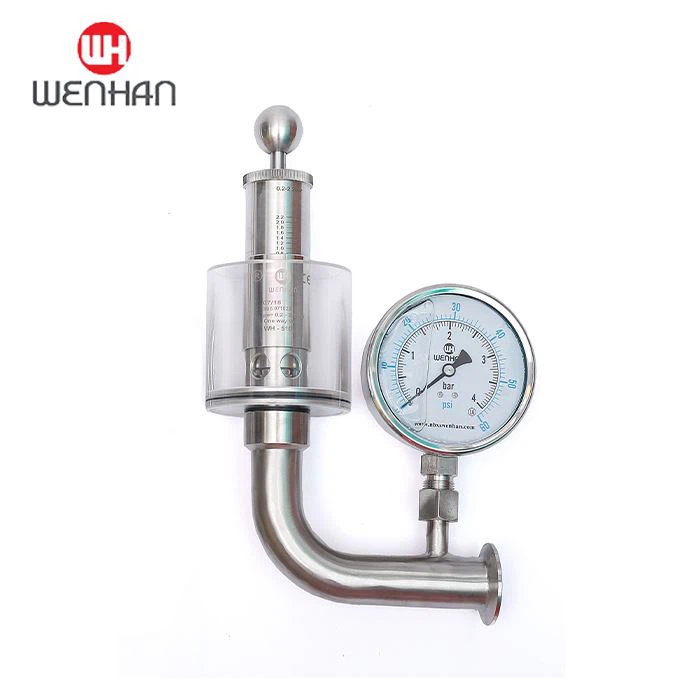

WH-5101B link:Fast-mounted clamp pressure gauge, dial 100 pressure range 0-4bar M20*1.5 shock proof Diameter, Elbow type 32*1.5 internal design pressure, controlled by spring
| No. | Name | Material |
| 1 | Valve Seat | SS304 |
| 2 | Ball Seat | EPDM |
| 3 | O Ring | EPDM |
| 4 | Valve Body | SS304 |
| 5 | Glass Cover | PMMA |
| 6 | O Ring | EPDM |
| 7 | Valve Element | SS304 |
| 8 | Spring Pad | SS304 |
| 9 | Spacer bush | SS304 |
| 10 | Spring | SS304 |
| 11 | Adjustment lever | SS304 |
| 12 | Pull Rod | SS304 |
| 13 | Pull the Ball | SS304 |
Application Scene
