Stainless Steel Sanitary Safety Valve
WH-5101B
- Product Introduction
Stainless Steel Sanitary Safety Valve is a high-quality valve designed for use in various industries, including food and beverage, pharmaceuticals, and biotechnology. It is made of premium quality stainless steel, which makes it durable, corrosion-resistant and easy to clean. The valve is designed to prevent overpressure in pipelines and tanks, ensuring maximum safety and efficiency for your system. It is also designed to be easily disassembled for maintenance and cleaning purposes, reducing downtime and increasing productivity. This valve comes with different sizes and pressure ratings, making it suitable for a wide range of applications. Its reliable performance, superior quality, and ease of use make it an ideal choice for any sanitary process system.
Wenhan Sanitary Safety Exhaust Valve This product is suitable for pharmaceutical, beer, beverage, dairy and other industries.
Application

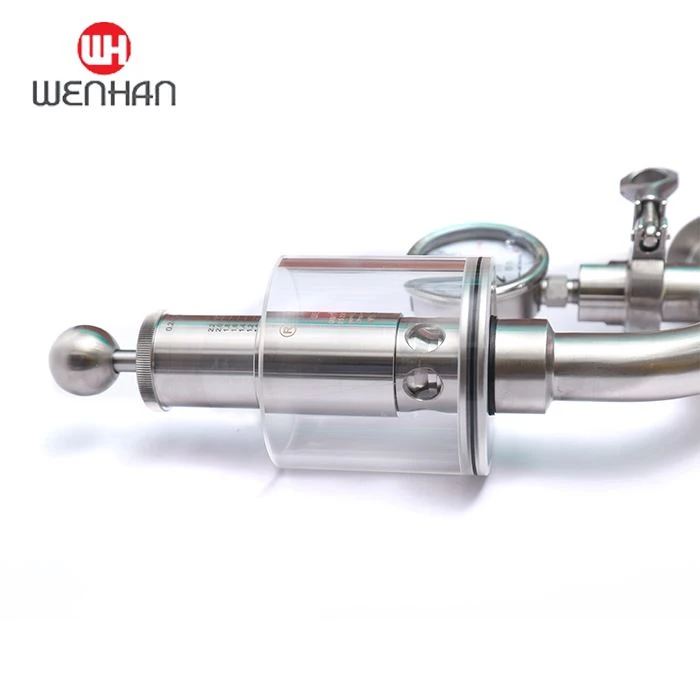

Wenhan Series Stainless Steel Sanitary Air Release Valve with Pressure Gauge is a self-acting device, or could be manually operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise numeric value.
Structure and characteristics:
1. It has a series of advantages such as simple structure, beautiful shape, quick pressure regulation, and convenient maintenance.
2. The pressure control is adjustable and can be adjusted arbitrarily within a safe range
3. The valve body material is made of stainless acid-resistant steel, the surface is bright and clean, the seal is made of special food rubber, and the product conforms to hygienic standards
Materials
Body Materials: AISI-304 or AISI-316L
Cover: specialized tempered glass
Standard Design
Available in size: 1-1.5", 2", 2.5"
Tube (arm) size: from 0.5" to 4"
Default pressure scale: 0-1mpa and 0-140psi
Installation: supposed to be installed laterally
Standard: DIN, 3A, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or others upon request
Technical Specification
Working Pressure: 14.5psi/ 1bar (standard), could be adjustable before production
Temperature range: medium
Product Description
Q: what is the use of the glass cover on the pressure valve?
Answer: glass cover adds pure water, fill on 1/2 above water.
Q;What does the glass cover and water do?
A;Blisters form when pressure is created during fermentation.Add water to the glass cover to see the effect of fermentation and reduce bacteria contamination
Application Scene
FAQ
To place your order
send us your order list(models/quantities/colors)
we will send you PROFORMA INVOICE(PI) with shipping cost and Payment information for your confirmation for your confirmation
You arrange payment after you confirmed proforma invoice, we will arrange production after received your payment notice.
Specific delivery date depends on your specific needs, normallly delivery in 1-3 days.
We will arrange delivery after your payment arrived and goods ready,and at the same time we will tell you goods tracking number so that you could know your goods condition by this number from courier site.
You will receive your order in about 3-5 days after goods ship out.
Product Description
Q: what is the use of the glass cover on the pressure valve?
Answer: glass cover adds pure water, fill on 1/2 above water.
Q;What does the glass cover and water do?
A;Blisters form when pressure is created during fermentation.Add water to the glass cover to see the effect of fermentation and reduce bacteria contamination
