Mechanical Safety Valve
WH-5102Q
The valve is applied to pressure vessel pipeline system.The valve is applied to pressure vessel pipeline system. Breather valves are safety devices required for storage tanks/containers/gas or vapor pipe lines/reactors etc. having chemicals or any other fluid to be handled carefully. Breather valves with desiccants are used during transportation of sensitive equipments/goods to protect from pressure differentials due to change in climatic conditions.Combustion research associates manufacturers Pressure Vacuum Relief Valves(PVRV),Breather Valves, Safety Relief Valves and Vacuum Breather Valves-of wide range to meet the industry requirements. In case of combustible fluids storage the safety valves should be used along with flame arrestors.
- Product Introduction
The Mechanical Safety Valve is a reliable and robust safety device designed to protect equipment and processes from overpressure. With a compact design and high accuracy, it is capable of opening at a specific set pressure to release excess pressure and prevent damage to equipment or personnel. This valve is suitable for a wide range of applications including oil and gas, chemical processing, and power generation. Made from high-quality materials, it is resistant to corrosion, wear, and stress, ensuring longevity and optimal performance. The easy to install and maintain, making it a popular choice for safety applications.
Introduction to Functions and Characteristics
The valve is applied to pressure vessel pipeline system.
Breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can exhaust. Conversely, it can close. The pressure regulating function is designed internally and the spherical cover is designed externally. When a vacuum (standard - 0.2BAR) is generated in the pipeline system, the valve opens automatically, and the outside air enters the container to prevent the container from flattening. To ensure the safety and protection of equipment and related instruments, but also to meet the needs of a variety of production processes, the valve stainless steel material, health design, to meet a variety of food processing, beer, beverage and pharmaceutical industries.
Technical data: Connection:Clamp Pressure:0.2mPa Temperature:-30℃+150℃ Working Media：Gas
| Size | D | d | H |
| 1.5" | Φ50.5 | Φ48 | 98 |
| 2" | Φ64 | Φ56 | 110 |
A Mechanical Safety Valve is a type of valve that is designed to automatically release pressure in a system once it exceeds a certain threshold. This is critical in high-pressure systems where excess pressure can cause equipment failure or even explosions.
The basic design of a Mechanical Safety Valve consists of a pressure spring that compresses when pressure builds up in the system, causing the valve to open and release the excess pressure. The valve is typically equipped with an external lever that allows for manual operation if necessary.
Mechanical Safety Valves are commonly used in applications such as steam boilers, pressure vessels, and pipelines in the oil and gas industry. They are typically made from high-quality materials such as stainless steel or brass to ensure longevity and reliability.
In addition to their primary function of pressure relief, Mechanical Safety Valves also play a crucial role in preventing accidents and protecting personnel from potential hazards. They are subjected to strict regulatory standards and must undergo regular inspections and maintenance to ensure proper function.
Overall, Mechanical Safety Valves are an essential component in many industrial systems and play a critical role in ensuring safe and reliable operation.

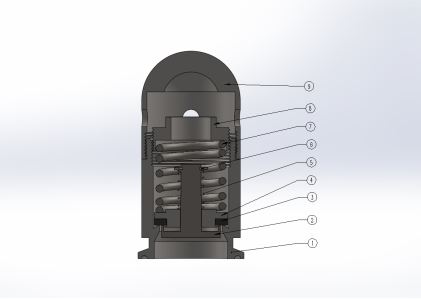

| No | Name | Material |
| 1 | Valve seat | SS304 |
| 2 | Valve element | SS304 |
| 3 | Gasket pad | EPDN |
| 4 | Valve pad | SS304 |
| 5 | Valve element spring | SS304 |
| 6 | Clip spring | SS304 |
| 7 | Spring | SS304 |
| 8 | Adjustment cap | SS304 |
| 9 | Spherical cover | SS304 |
Application Scene
