Bunging Valve
WH-5101B
- Product Introduction
Bunging Valve is a product that provides solutions for reliable and efficient oil extraction. It's designed to fit barrels with a 2-inch bung opening and installs easily without specialized equipment. The valve is made of high quality materials ensuring durability and corrosion resistance.
One of the key features to be able to regulate oil flow during extraction. This ensures that the process is efficient and consistent and minimizes spillage and waste. The valve also has a built-in safety mechanism that prevents overpressure, reducing the risk of accidents and damage to machinery.
Another advantage is easy cleaning and maintenance. It can be easily disassembled for cleaning or maintenance, and its compact design makes it easy to store and transport.
Product Description
Customer Question & Answer
Pressure relief valve--beer brewery
Material: SUS304, SUS316L, AISI304, AISI316L
Main size: 25mm-100mm&1"-4"
Connection: Welded, clamped, union ends
Certification: MTC certification
Application: It is specially designed for sanitary tank in beer brewery industry.
Please feel free to contact me if you need further information of us or our products.

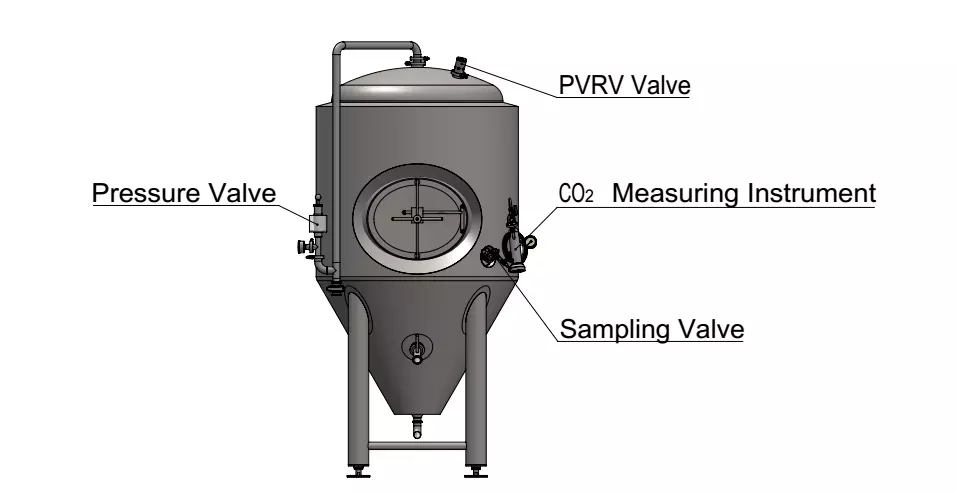

The pressure relief valve is used in the brewery system, on the top of brewery tank, It is some kind of safety valve that opens when the pressure in the tank is too high. The pressure relief valve is control by a spring and monitor by a pressure gauge. The connection of the valve could be clamp or union or welding, Size according to customer's requirement.
FAQ
Q: Why would I choose you?
Xiangshan Wenhan Fluid Equipments Co.,ltd. has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 10 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solving rate after sales.

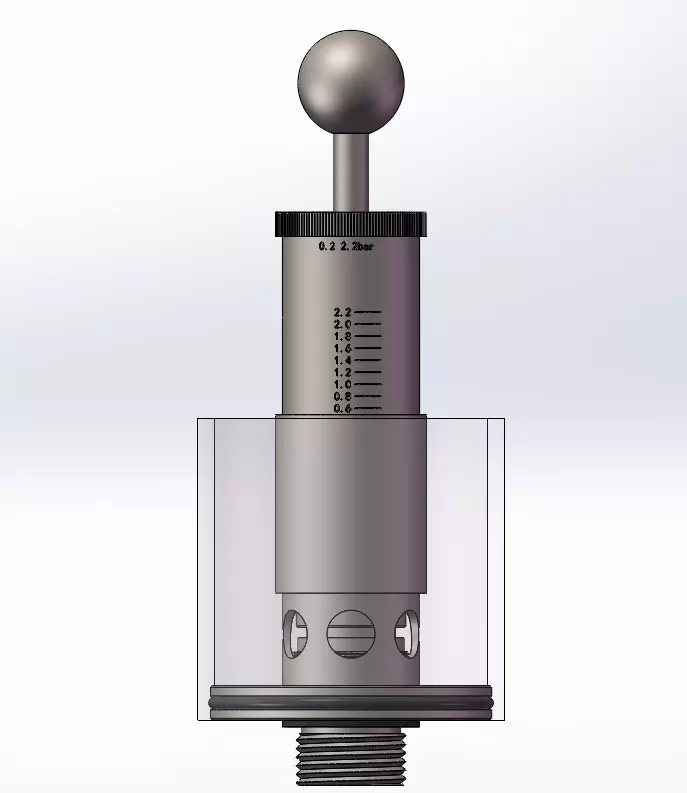

The valve is applied to pressure vessel pipeline system, Regulating the one-way exhaust valve protects the container from explosion when the pressure is higher than the set pressure(Standard 1Bar).On the Contrary, It can exhaust when the pressure is higher than the set pressure(Stand I BAR).The pressure on the regulating rod is calibrated. The required pressure is adjusted according to the calibration. The valve is easy to use and accurate to calibrate.Adding water to the glass cover can see the fermentation effect and reduce bacterial contamination.At the same time.It can also meet the needs of various production process.suitiable for various food processing,beer, beverage and pharmaceutical industries.
| Product Name | Bunging Valve |
| Material | Stainless Steel 304 |
| Color | Nickel white |
| Connection | Clamp |
| Operation temperature | -30℃~150℃ |
| Adjusting Range | 0.2-2.2Bar,1.1-3.2Bar |
| Working medium | Gas |
| Used | Beer,food,dairy,pharmaceutical,chemial equipment etc. |
WH-5101B link:Fast-mounted clamp pressure gauge, dial 100 pressure range 0-4bar M20*1.5 shock proof Diameter, Elbow type 32*1.5 internal design pressure, controlled by spring
Size:1.5"TC H:316 h1:200 W:179 DΦ90 h2:202
| No. | Name | Material |
| 1 | Valve Seat | SS304 |
| 2 | Ball Seat | EPDM |
| 3 | O Ring | EPDM |
| 4 | Valve Body | SS304 |
| 5 | Galss Cover | EPDM |
| 6 | O Ring | SS304 |
| 7 | Valve Element | SS304 |
| 8 | Spring pad | SS304 |
| 9 | Spacer bush | SS304 |
| 10 | Spring | SS304 |
| 11 | Adjustment lever | SS304 |
| 12 | Pull Rod | SS304 |
| 13 | Pull the ball | SS304 |
A: We are bunging valve factory
Q; How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. it is according to
quantity
Q:How can I check your factory situation while it's difficult for me to come to China?
A: We have photos and videos on our website, it shows easy step of the manufacturing.
Q:Do you have a minimum quantity of the products?
A: No.we will make the business with you with even 1pc.Because we believe every coopeartion can be a long-term relationship for
our positive communication.high quality,competitive price and good after-sale service.
Q: What is your terms of payment?
A: Payment <=1000USD, 100%In advance. Payment >=1000USD, 30%T/T in advance. balance before shipment.
