Sanitary Grade Weld Union Type Sight Glass
Product Description: Stainless Steel Sanitary Weld Union Type Sight Glass products are widely used in the beer industry,pharmaceutical industry,oil industry,chemical idustry and machinery manufacturing and other fields. Technical parameters Connection: quick installation, welding, thread...
- Product Introduction
Sanitary Grade Weld Union Type Sight Glass is a high-quality product that is designed for use in the food and beverage industry. It is made from high-quality materials, which are resistant to corrosion, and has a sturdy construction that can withstand the rigors of industrial use. This product comes with a unique union type design, which makes it easy to install and use. The sight glass feature of this product allows for easy monitoring of the flow of liquids and gases within the process line.
The trend in the food and beverage industry is shifting towards the use of high-quality components to ensure food safety and quality. As a result, the demand for products like the expected to increase in the coming years. Manufacturers are also expected to incorporate advanced technologies in the production of similar products to meet the ever-evolving needs of the industry.
Product Description:
Stainless Steel Sanitary Weld Union Type Sight Glass products are widely used in the beer industry,pharmaceutical industry,oil industry,chemical idustry and machinery manufacturing and other fields.
Technical parameters
Connection: quick installation, welding, thread (optional)
Standards: ISO, DIN, IDF, SMS, 3A, SMS, etc
Connection of pipeline components: welding type, quick installation type, thread type.
Material: 304 or 316L.
Pipeline flow control: dn25-150 and 1"-6
Shell material: 304, 321, 316, 316L stainless steel.
Material of window: toughened borosilicate glass, quartz glass.
Sealing material: nitrile rubber, polytetrafluoroethylene.
Work pressure (MPa) : 0.6 or less
Operating temperature (℃) : 0~200℃
| Material | Contact product parts 316L(1.4404) Non-Contact product parts 304(1.4301) Provide EN10204 3.1B Certificate |
| Sight Glass | Pyfex glass(straight sight glass) Pyfex glass/temprered glass(Union sight glass) |
Seal Material | Standard EPDM FPM Silicone, PTFE,NBR Seal materials,comply with FDA (177.2600) |
| Temperature range | -20℃+135℃(EPDM) |
| Surface treatment | Internal surface Ra≤0.8μm External surface finish Ra≤1.6μm |
| Connection | Connection method:welding,clamp,thread, flange |

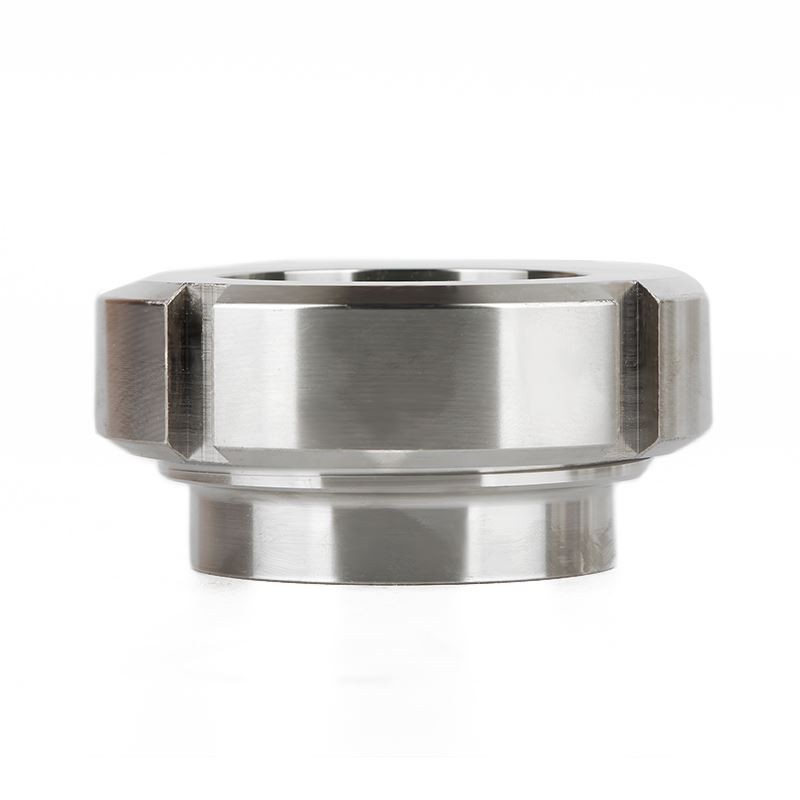

Product Show
