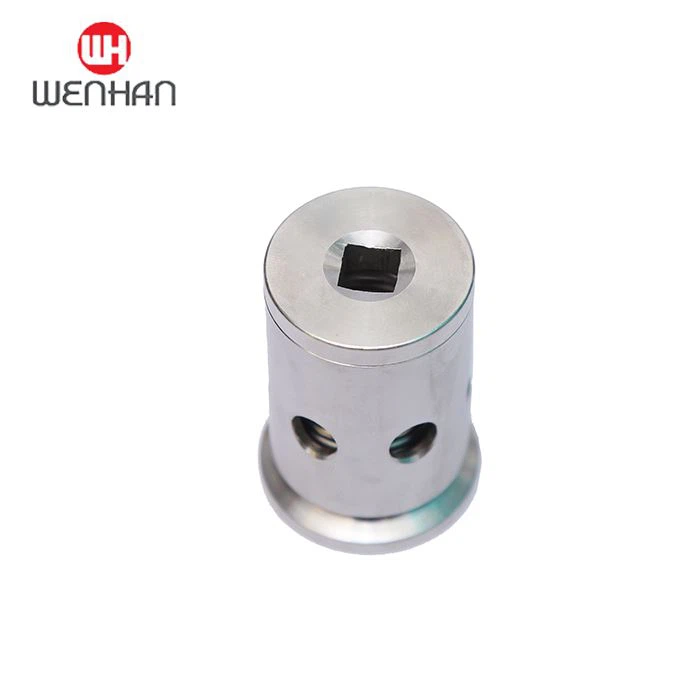

Pressure Vacuum Valve

WH-5102

Send Inquiry

Product Introduction

A Pressure Vacuum Valve (PVV) is a safety device installed on storage tanks to protect them from overpressure or vacuum damage. It allows the tank to breathe during filling or emptying, while also preventing the tank from being exposed to dangerous levels of pressure or vacuum. PVVs are designed to automatically open and close in response to changes in atmospheric pressure, ensuring stable tank pressure conditions. They can be installed on a variety of tanks used in a range of industries, including petroleum, chemical, pharmaceutical, and food processing. PVVs are typically made of corrosion-resistant materials such as stainless steel, and are designed to operate reliably under harsh environmental conditions.

Working principle:

The Stainless Solutions Hygienic Tank pressure and Vacuum relief valve is designed to protect tanks from excess atmospheric changes.

If the internal tank pressure increases beyond a set pressure, the valve will open automatically to the exhaust outside the tank, venting excess air into the atmosphere. The valve will return to the normally closed position.

If there is vacuum in the tank the piston inside the valve opens automatically and draws air into the tank. As a result the air inside the tank will equalise. The valve offers the advantage over other valves by way of its doubling acting operation

Technical Information:

Diameters: Available from 1 1/2” – 2.5” OD.

Specification: US3A, Weld, RJT, DIN, SMS, ISO, IDF.

Materials: 304 Stainless Steel.

Valve Ends: Clamp, Weld, Thread, Male.

Opening Pressure: 0.089 Ib of vacuum.

Working Pressure: 2.9-45 psi. Set at 15 psi (1 Bar). Pre-set at factory.

Vacuum: Set at 0.15 PSI (0.15-0.75psi). Pre-set at factory.

Temperature: 14 ° F to + 250 ° F (-10 C – +120 C)

Seal Material: Food grade EPDM, Viton. Surface Finish: ID/OD mirror polish. ID Ra <0.8 μm, OD Ra < 0.8/1.6 μm.

Special Features:

Full CNC precision machined forged body

Superior Hygienic Design.

Easy to Assemble/disassemble.

Valve Repair Kit available.

Adjustable and Permanent Versions available.

Full Control and traceability during manufacturing process 100% tested and Inspected.

Size	D2	D1	D3	H
Φ34	Φ34	Φ25	Φ30.5	49mm
1"	Φ50.5	Φ25	Φ30.5	49mm
1.5"	Φ50.5mm	Φ35mm	Φ42mm	72mm
2"	Φ64mm	Φ47mm	Φ51mm	85mm
2.5"	Φ78mm	Φ59mm	Φ64mm	90mm
3.5"	Φ105	Φ83.5	Φ89	131mm

No.	Name	Material
1	Valve Body	SS304
2	Valve Element	SS304
3	Filler Plate	EPDM
4	The Valve Core Seat	SS304
5	Negative Pressure Spring	SS304
6	Positive Pressure Spring	SS304
7	Blind Nut	SS304
