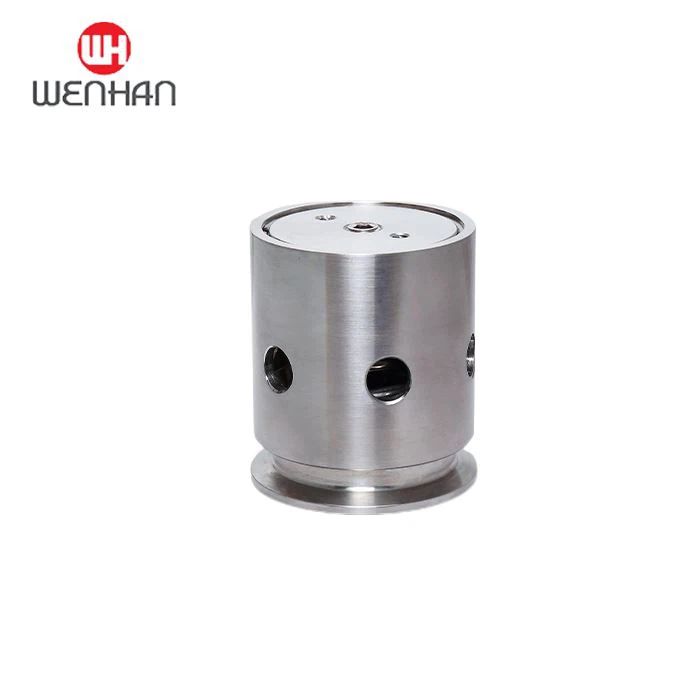

304 Stainless 3.5 Sanitary Breathing Safety Valve Series
WH-5102 The valve is applied to pressure vessel pipeline system
- Product Introduction
The 304 Stainless 3.5 Sanitary Breathing Safety Valve Series is a high-quality safety valve designed for use in sanitary applications such as food and beverage, pharmaceuticals, and biotech industries. Made from top-grade 304 stainless steel, this valve series is highly durable and resistant to corrosion, making it ideal for use in harsh environments. Its unique design features a breathing mechanism that ensures reliable pressure release and prevents damage to the valve. This safety valve series is also entirely compliant with sanitary standards, ensuring that it meets the stringent requirements of regulatory bodies. Its compact size and easy maintenance make it easy to install and operate, while its high precision ensures optimal performance and safety.
Introduction to Functions and Characteristics
The valve is applied to pressure vessel pipeline system.
Breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can exhaust and turn off. When the vacuum (standard-0.2BAR) occurs in the pipeline system, the valve opens automatically to ensure the safety and protection of equipment and related instruments. At the same time, it can also meet the needs of various production processes. The valve is stainless steel. Material, sanitary design, satisfied with a variety of food processing, beer, beverage and pharmaceutical industries.
Application
Breather valves are safety devices required for storage tanks/containers/gas or vapor pipe lines/ reactors etc. having chemicals or any other fluid to be handled carefully.Breather valves with desiccants are used during transportation of sensitive equipments/ goods to protect from pressure differentials due to change in climatic conditions.
We manufactures Pressure Vacuum Relief Valves (PVRV), Breather Valves, Safety Relief Valves and Vacuum Breaker Valves of wide range to meet the industry requirements.
In case of combustible fluids storage the safety valves should be used along with flame arrestors.
Technical data: Connection：Clamp Pressure：0.2mpa Temperature：-30℃+150℃ Working Media:Gas
| Size | D2 | D1 | D3 | H |
| 1.5" | Φ50.5 | Φ35 | Φ42 | 72 |
| 2" | Φ64 | Φ47 | Φ51 | 85 |
| 2.5" | Φ78 | Φ59 | Φ64 | 90 |
| No | Name | Material |
| 1 | Valve body | SS304 |
| 2 | Valve element | SS304 |
| 3 | Gasket | EPDM |
| 4 | Valve element seat | SS304 |
| 5 | Negative spring | SS304 |
| 6 | Clip spring | SS304 |
| 7 | Postive valve | SS304 |
| 8 | Steel locknut | SS304 |
| 9 | Screw cover | SS304 |
Application Scene
