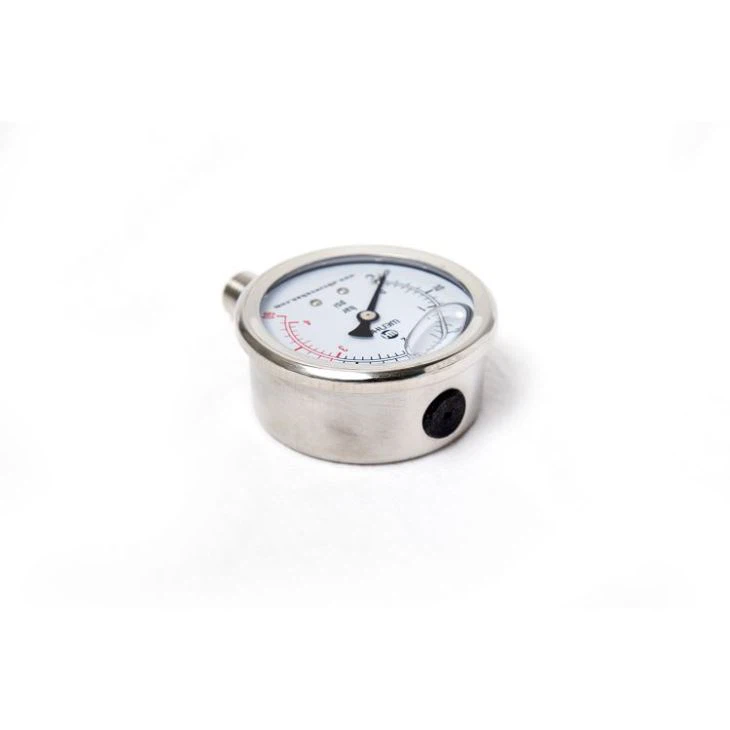

Threaded 60 Psi Pressure Gauges
Y-60BF
The working principle of the mechanical pressure gauge is to indicate the pressure value by elastic deformation of the internal elastic sensitive element under pressure.
- Product Introduction

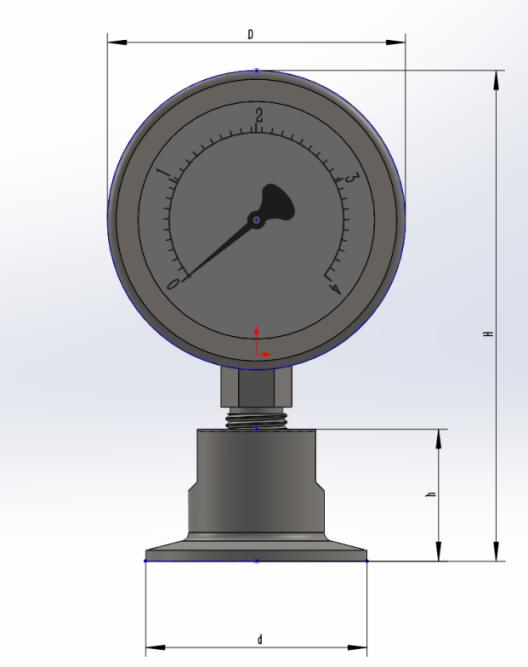

Size | d | D | H |
Y60 | M14x1.5 | Φ68 | 92 |
Y100 | M20x1.5 | Φ106 | 136 |
Threaded 60 Psi Pressure Gauges are designed to accurately measure and display pressure readings up to 60 pounds per square inch. These gauges are threaded for easy installation and feature a durable construction that can withstand harsh environments and rough handling. Their compact design makes them ideal for use in tight spaces, while their clear and easy-to-read display ensures that pressure readings can be easily monitored at all times. are suitable for use in a wide range of applications, from industrial to automotive, and are a reliable and cost-effective solution for monitoring and controlling pressure levels.

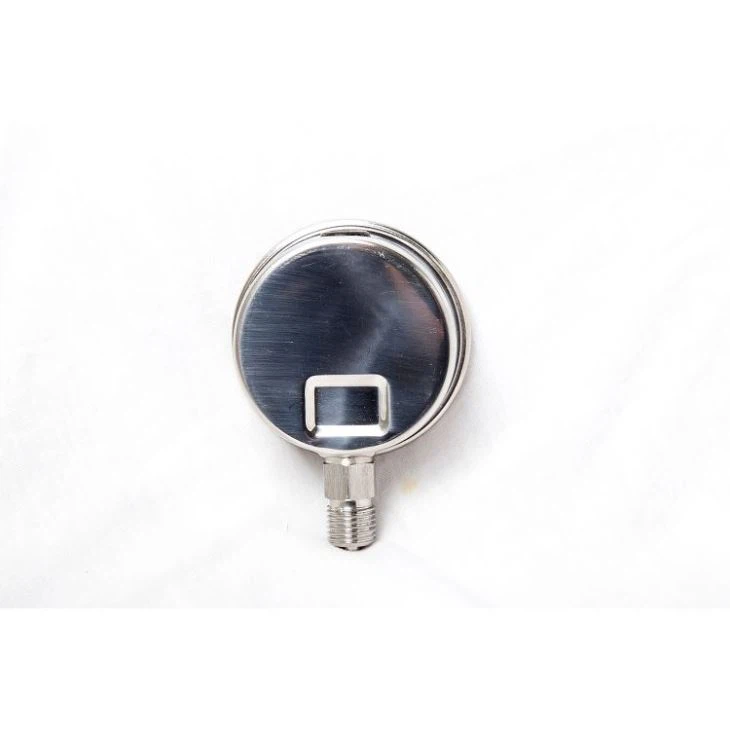

Threaded pressure gauge
Working medium: gas
Pressure range | 0-4bar |
Installation | Radial direction |
Material | SS304 |
The connection method | Thread |
Internal oil | Glycerine(shockproof) |
The working principle of the mechanical pressure gauge is to indicate the pressure value by elastic deformation of the internal elastic sensitive element under pressure. The mechanical pressure gauge generally uses a spring tube, a diaphragm, a bellows and a bellows as elastic elements. After the deformation occurs, it will be deformed and amplified by the gear transmission mechanism to display the corresponding pressure value.
Installation method: 1. Under normal circumstances, the instrument should be installed vertically upwards for easy observation. 2. The interface of the universal standard pressure gauge dial Φ60 is M14*1.5 external thread. 3. Sealing should be installed with sealing gasket such as PTFE.
