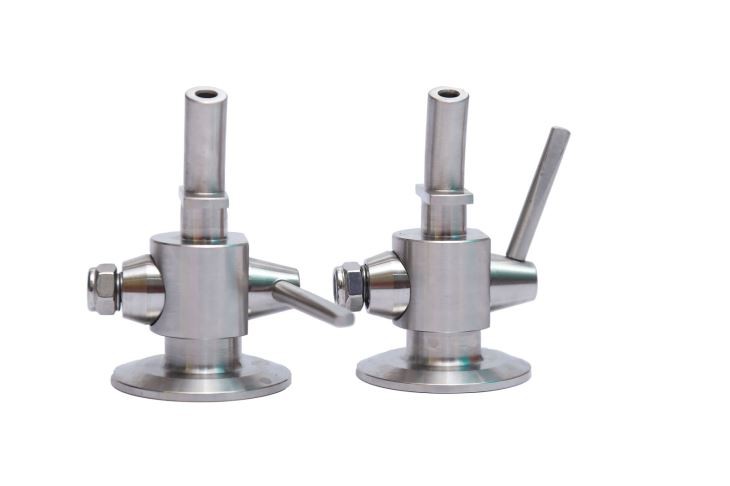

Sanitary Sampling Valve Beer Equipment
WH-5104A Hygienic design, straight-through caliber, no rubber inside, taper seal, suitable for sampling beer, beverage, container equipment.
- Product Introduction
Sanitary Sampling Valve is a key component of Beer Equipment, providing a safe and hygienic way to extract beer samples for testing and quality control purposes. Made of high-quality stainless steel, this valve is designed according to international sanitary standards, ensuring no contamination or leakage during the sampling process. Its precision design allows for accurate and consistent sampling, while its easy-to-use handle design makes it convenient for operators to use. Its robust construction and durability also guarantee a long service life.
Material:Stainless Steel 304
PTFE Gasket (0-150C)
Connection:Tri-Clamp (50.5mm)
With hose adaptor outlet
Max. Pressure:10 Bar(1145 psi)
Valve seat and gasket comply with FDA 21CFR177.2600
Surface treatment Ra 16-32uin
Product Model TC-samplev
Product Length:9.0
Product Height:9.0
Products Width:9.0
Item specifics:
Model number: Aseptic sampling valve TC
Type: Valves
Product name: Aseptic sampling valve TC
Material: SS304
Packing: 1 pcs Aseptic sampling valve TC
Connection method: quick loading
| Size | D2 | D1 | D3 | D4 | H |
| 1.5" | Φ11.4 | Φ5 | Φ30 | Φ50.5 | 83 |
| 2" | Φ11.4 | Φ5 | Φ30 | Φ64 | 83 |
| No. | Name | Material |
| 1 | Locknut | SS304 |
| 2 | Core Cover | SS304 |
| 3 | Spring | SS304 |
| 4 | Valve Body | SS304 |
| 5 | Valve Element | SS304 |
| 6 | Handle | SS304 |
Application Scene
