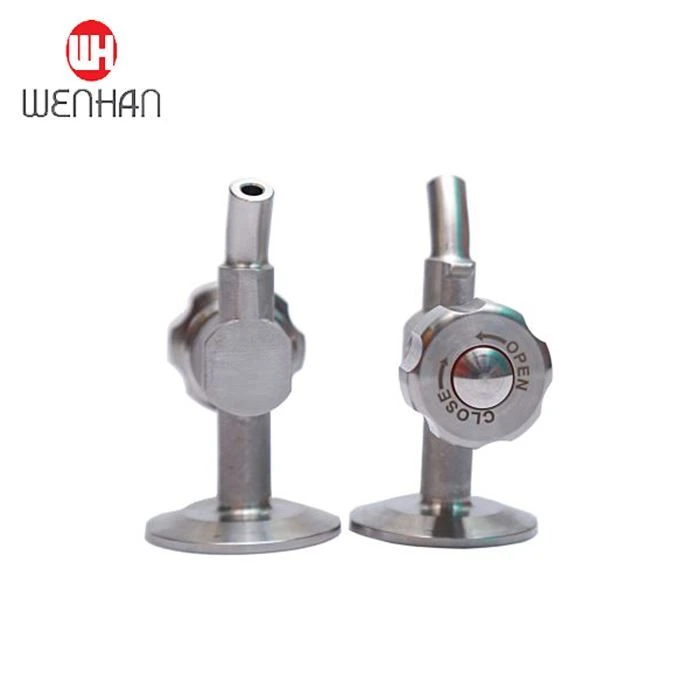

Sanitary 1/2 Inch(25.4mm) Tri Clamp Sampling Valve Faucet Brewing Equipment
WH-5104B clamped sampling valve Using EPDN expansion, sealing, suitable for sampling beer, beverage, container equipment
- Product Introduction
Sanitary 1/2 Inch(25.4mm) tri clamp sampling valve faucet brewing equipment this new sampling valve with high food grade finish inside and outside,by using food grade FKM sealing, a wider application.You can hang a coil on the valve as well to reduce the foam.
| No. | Name | Material |
| 1 | Valve body | SS304 |
| 2 | Gasket | EPDM |
| 3 | Valve Element | SS304 |
| 4 | Pin | SS304 |
| 5 | Locknut | SS304 |
| 6 | Clip spring | SS304 |
| 7 | Spacer bush | SS304 |
| 8 | Open and parallet handle | SS304 |
| 9 | O-ring | SS304 |
Application Scene
