Tri Clamped Bunging Valve Sanitary Exhaust Air Release Exhaust Valve

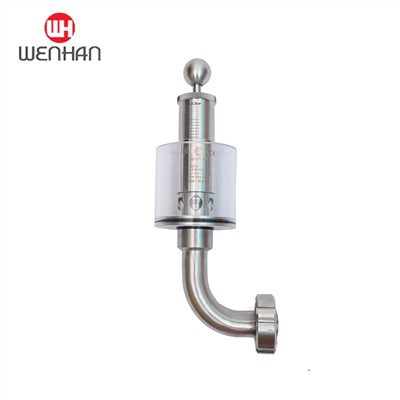

WH-5101E Carbon dioxide pressure regulating valve elbow type
- Product Introduction
Product description:
| Product Name | Special water seal type exhuast for fermentation tank |
| Material | Stainless Steel 304 |
| Color | Nickel white |
| Connection | Clamp |
| Operation temperature | -30℃~150℃ |
| Adjusting range | 0.2-2.2Bar;1.1-3.2Bar |
| Working medium | Gas |
| Used | Beer,food,dairy,pharmaceutical,chemial equipment etc. |
| Size | D2 | D1 | D3 | H |
| 1.5" | Φ50.5 | Φ28 | Φ90 | 330 |
| No. | Name | Material |
| 1 | Valve seat | SS304 |
| 2 | Ball seat | EPDM |
| 3 | O Ring | EPDM |
| 4 | Valve body | SS304 |
| 5 | Glass cover | PMMA |
| 6 | O Ring | EPDM |
| 7 | Valve element | SS304 |
| 8 | Spring pad | SS304 |
| 9 | Spacer bush | SS304 |
| 10 | Spring | SS304 |
| 11 | Adjustment lever | SS304 |
| 12 | Pull rod | SS304 |
| 13 | Pull the ball | SS304 |
Tri Clamped Bunging Valve Sanitary Exhaust AirRelease Exhaust Valve is a type of valve used in hygienic processing plants. It is designed to release excess air from processing vessels while preventing contamination from outside sources. The valve features a tri-clamp connection, which ensures a tight seal and easy installation. The valve is made of high-quality materials, such as stainless steel, which makes it resistant to corrosion and suitable for use in harsh environments. The product is easy to clean and maintain, ensuring a high level of hygiene.
Material: SS304 stainless
Processing: CNC machine
Size: There are 25mm outter diameter with 1"/1.5" clamp ferrule and 32mm outter diameter with 1"/1.5" clamp ferrule optional. There are with the same clamp ferrule-50.5mm.
cking & shipping information of the China Tri Clamp Butterfly Valves with Stainless Steel Fiber Handle.
