Mini Steel Safety Valve

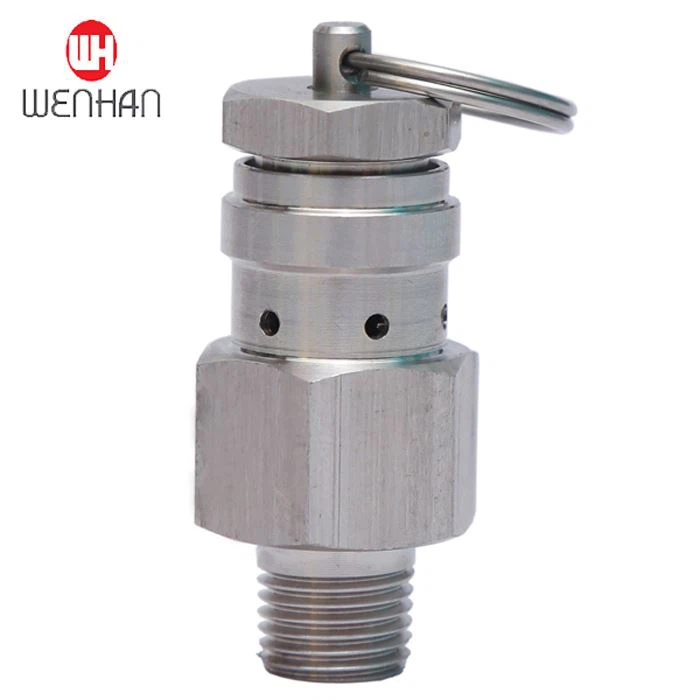

WH-5105 mini steel safety valve
- Product Introduction
WH-5105 Safety Valve
mini steel safety valve
The valve is used in pressure vessel piping systems.Stainless steel hand type high pressure vessel explosion-proof one-way exhaust valve protection function, when is higher than the set pressure (standard 2 bar) can exhaust, whereas closed, at the same time can also meet the demand in all kinds of production process, to adjust the pressure, the valve in stainless steel material, health design, content with a variety of food processing, beer, beverage and pharmaceutical and other industries.
Product Description
| Product Name | Safety valve |
| Material | Stainless Steel 304 |
| Color | Nickel white |
| Connection | Thread |
| Operation temperature | -30℃~150℃ |
| Pressure | 0.1Mpa |
| Working medium | Gas |
| Used | Beer,food dairy,pharmaceutical chemical equipment etc. |
| Size(MM) | |
| D1 | Φ8.5 |
| D2 | NPT 1/4 |
| D3 | 22 |
| D4 | Φ20 |
| D5 | Φ18 |
| D6 | 19 |
| H | 20 |
| No. | Name | Material |
| 1 | Valve Body | SS304 |
| 2 | Spool Seal Sleeve | EPDM |
| 3 | Closed Core Sleeve | SS304 |
| 4 | Spring | SS304 |
| 5 | Rating Nut | SS304 |
| 6 | Valve Element | SS304 |
| 7 | Ring-Pull | SS304 |
